6mm SUPERLOK SQC Series Quick Connector Fitting
6mm SUPERLOK SQC Series Quick Connector Fitting
SKU:SQC-300f05
Efficient 6mm SUPERLOK SQC Series Quick Connector Fitting for secure fluid system connections. Durable stainless steel construction with optional valved configurations for easy and leak-proof operations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
6mm SUPERLOK SQC Series Quick Connector Fitting
$49.99
Quantity: 1
Claim Your Seller Account
6mm SUPERLOK SQC Series Quick Connector Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6mm SUPERLOK SQC Series Instrumentation Quick Connector Fitting is engineered for precision and efficiency in fluid system connections. With a Coupled Pressure Rating of 3000 psig, 206 bar at 70°F, and 250 psig, 17.2 bar at 400°F, this fitting ensures secure sealing under varying conditions. Its 316 Stainless Steel body material guarantees durability, while the simple push-pull action and optional valved configurations enhance ease of use and minimize liquid or gas leakage. Whether for industrial or institutional applications, this fitting delivers reliability and performance.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
3000 psig | 206 bar

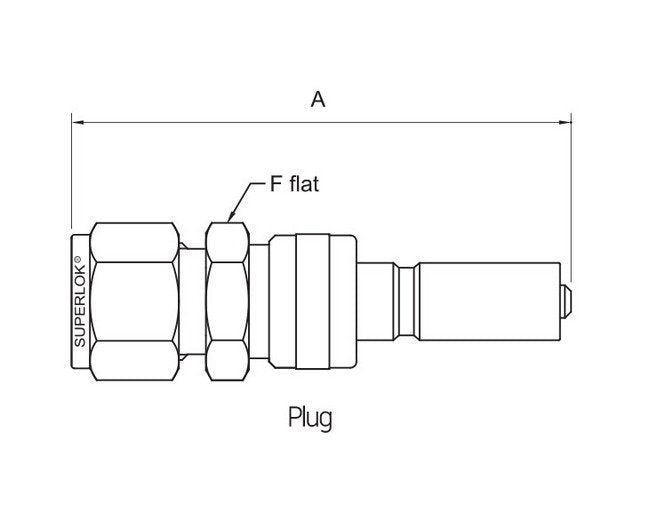

Technical Specs Dimension A
61.5 mm
Technical Specs Dimension F
15.9 mm
Technical Specs End Connections
6 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
0.4
Technical Specs Insertion Depth
1.09 in | 27.7 mm
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
15 L/min | 4 gpm
Technical Specs Plug Type
Single Shutoff Plug
Technical Specs Type
Plug
