6mm SUPERLOK® SRVL Series Low Pressure Relief Valve
6mm SUPERLOK® SRVL Series Low Pressure Relief Valve
SKU:REL-db22b9
Precisely control pressures with the compact 6mm SUPERLOK® SRVL Series Relief Valve. Reliable, secure, and adjustable for various systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
6mm SUPERLOK® SRVL Series Low Pressure Relief Valve
$49.99
Quantity: 1
Claim Your Seller Account
6mm SUPERLOK® SRVL Series Low Pressure Relief Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6mm SUPERLOK® SRVL Series Low Pressure Relief Valve is a reliable solution for maintaining optimal pressure in systems. With a maximum working pressure of 300 psig (206 bar) and a cracking pressure range of 10~250 psig (0.69~17.2 bar), this valve ensures precise pressure control. The compact design, adjustable cracking pressure, and lock wire feature provide flexibility and security. Each valve undergoes rigorous testing at the factory, guaranteeing performance and reliability. Ideal for a wide range of applications, this valve combines quality construction with precise functionality.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

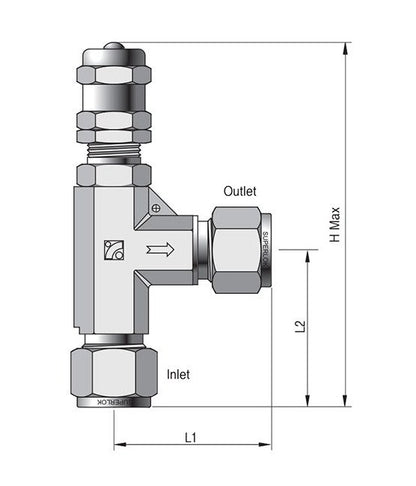

Technical Specs Dimension H
104.6 mm
Technical Specs Dimension L1
38.7 mm
Technical Specs Dimension L2
37.3 mm
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
6 mm Superlok®
Technical Specs Series
SRVL
