6mm Tube Outside Diameter Union Cross Fitting
6mm Tube Outside Diameter Union Cross Fitting
SKU:SUC-1e8abe
Enhance tube connections with our precision-designed 6mm Union Cross Fitting, guaranteeing safety and efficiency in high-pressure environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
6mm Tube Outside Diameter Union Cross Fitting
$34.99
Quantity: 1
Claim Your Seller Account
6mm Tube Outside Diameter Union Cross Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

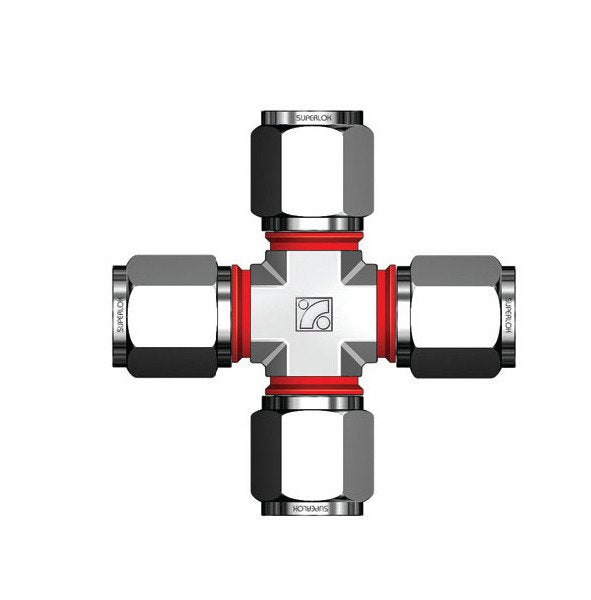

The SUCI Series 6mm Tube Outside Diameter Union Cross Fitting is a precision-engineered solution for connecting metric tubes. Crafted from top-grade materials like Alloy 625, Alloy 825, and Stainless Steel, this fitting boasts i-Fitting® components ensuring perfect compression, enhancing installer safety, and productivity. Its industry-changing design includes a built-in gap gauge for precise tightening, making it ideal for high-pressure environments. Experience efficiency, safety, and reliability with this patented, versatile fitting solution.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

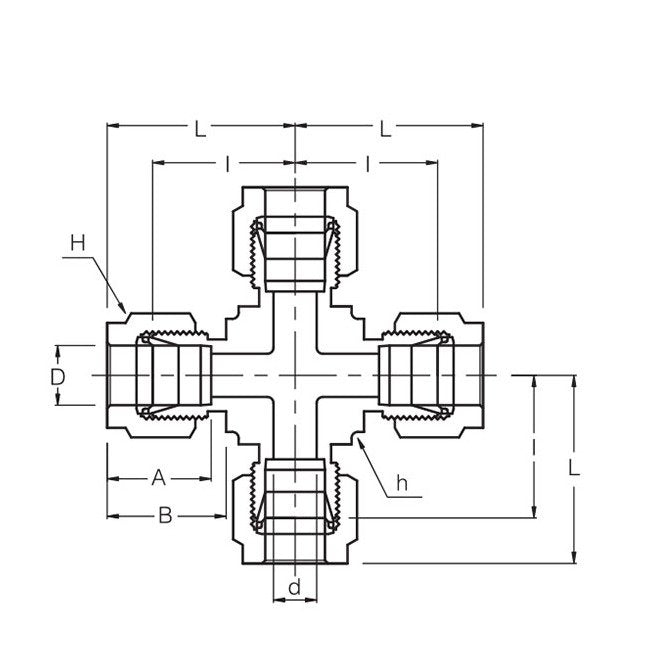

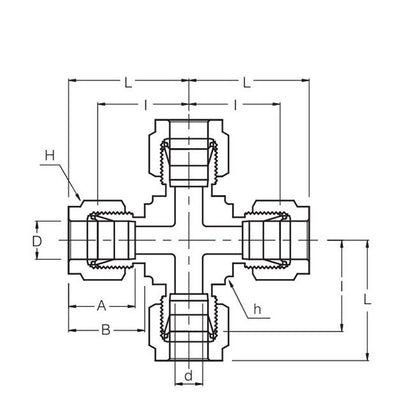

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
19.6 mm
Technical Specs Dimension L
27.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
