6mm Tube Socket Weld Connector Fitting - SSWCI Series

Name: 6mm Tube Socket Weld Connector Fitting - SSWCI Series
Brand: Superlok-Mako Products LLC
SKU: SSW-5aee8a
Price: 29.99 USD
Availability: OutOfStock

SKU:SSW-5aee8a

Enhance tube connections with precision-engineered 6mm Socket Weld Fitting for superior safety and efficiency. Patented design with built-in check ring for perfect compression.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

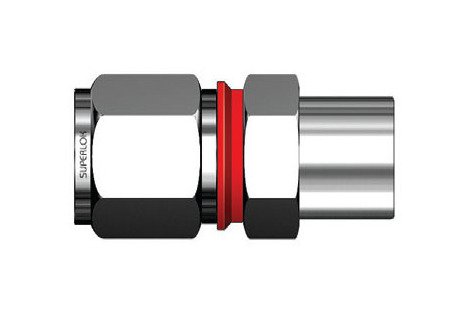

The SSWCI Series 6mm Tube Socket Weld Connector Fitting is a precision-engineered solution for connecting metric tubes. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability in high-pressure and chemical environments. Its patented i-Fitting® design incorporates a built-in check ring for perfect compression, enhancing safety, efficiency, and cost-effectiveness in valve connections. With dimensions designed for a range of tube sizes from 6mm to 25mm, this fitting offers industry-leading performance and compliance with stringent procurement standards.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

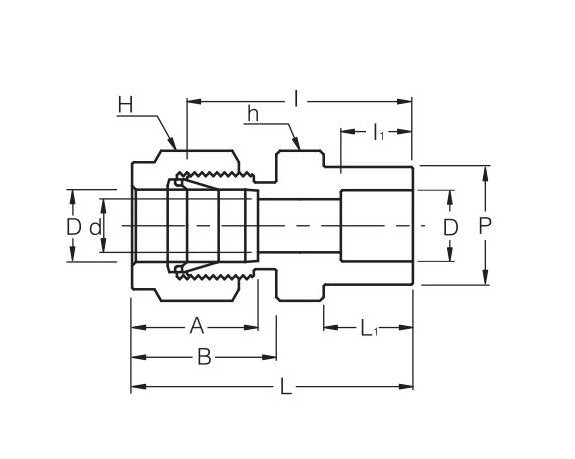

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

15.2 mm

Technical Specs Dimension B

17.7 mm

Technical Specs Dimension I

26.2 mm

Technical Specs Dimension I1

7.9 mm

Technical Specs Dimension L

33.5 mm

Technical Specs Dimension L1

10.4 mm

Technical Specs Dimension P

11.17 mm

Technical Specs Material

Technical Specs Minimum Dimension D

4.8 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Tube Outside Diameter D

6 mm

Technical Specs Width Across Flat H

14.3 mm
