6mm Tube Socket Weld Elbow - SSWEI Series
6mm Tube Socket Weld Elbow - SSWEI Series
SKU:SSW-c5d5f6
Premium 6mm Tube Socket Weld Elbow with patented i-Fitting® design for safety and efficiency. Ideal for valve connections.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
6mm Tube Socket Weld Elbow - SSWEI Series
$45.99
Quantity: 1
Claim Your Seller Account
6mm Tube Socket Weld Elbow - SSWEI Series
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

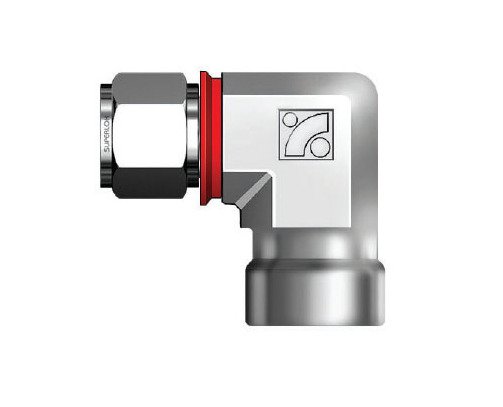

The SSWEI Series 6mm Tube Socket Weld Elbow is a precision-engineered fitting designed to connect metric tubes efficiently. Crafted from premium materials including Alloy 625, Alloy 825, and Stainless Steel, this elbow offers exceptional strength and corrosion resistance. Its innovative i-Fitting® design features a built-in check ring for perfect compression, enhancing safety in high-pressure environments. Ideal for valve connections, this industry-leading elbow improves productivity, reduces costs, and meets stringent institutional procurement standards.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

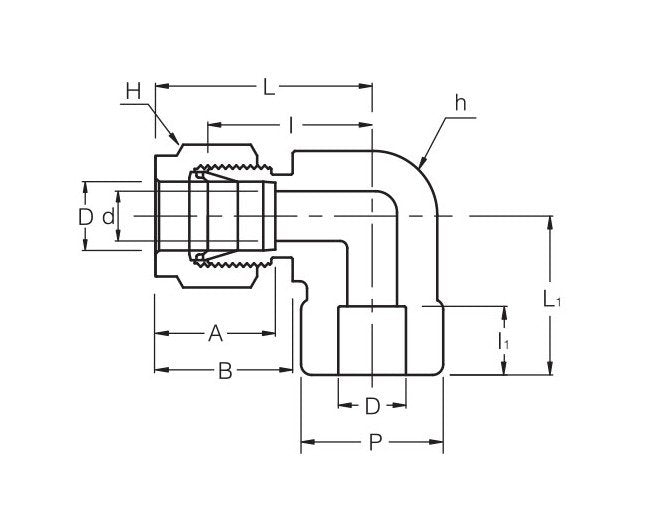

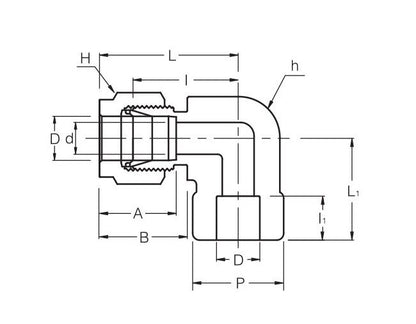

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.2 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
19.6 mm
Technical Specs Dimension I1
7.9 mm
Technical Specs Dimension L
26.9 mm
Technical Specs Dimension L1
19.6 mm
Technical Specs Dimension P
12.70 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14.3 mm
