6mm Tube Union Elbow Connector - SUEI Series
6mm Tube Union Elbow Connector - SUEI Series
SKU:SUE-908f5c
Enhance metric tube connections with precision and safety using the 6mm Tube Union Elbow from SUEI Series.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6mm Tube Union Elbow Connector - SUEI Series
$29.99
Quantity: 1
Claim Your Seller Account
6mm Tube Union Elbow Connector - SUEI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

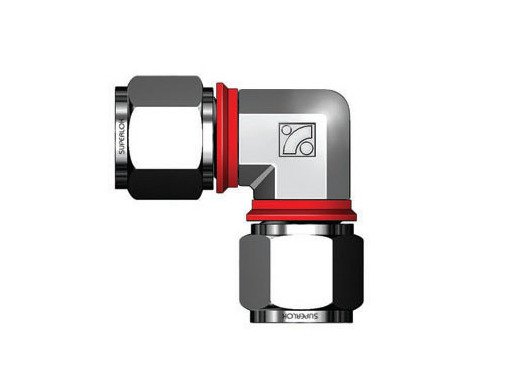

The 6mm Tube Outside Diameter (D) Union Elbow Connector from the SUEI Series offers superior metric tube connection capabilities. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this union elbow ensures precise fittings. Featuring the innovative i-Fitting® components with a built-in check ring for optimal compression, this fitting enhances safety, productivity, and cost-efficiency. Perfect for valve connections in high pressure and chemical environments, the SUEI Series Union Elbow is an industry-leading solution for both consumer and institutional needs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

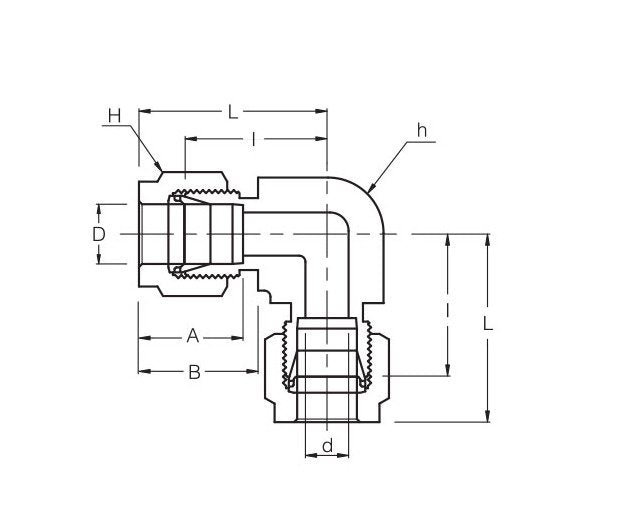

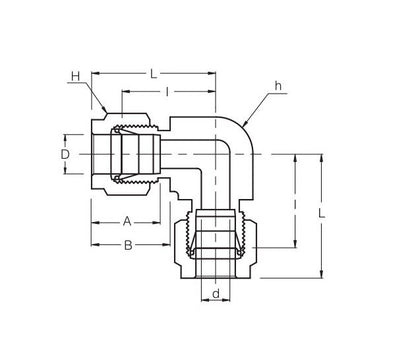

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
19.6 mm
Technical Specs Dimension L
27.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
