6mm Tube Union Tee Fitting – SUTI Series
6mm Tube Union Tee Fitting – SUTI Series
SKU:SUT-44e1ec
Securely connect metric tubes with precision using the SUTI Series 6mm Tube Union Tee Fitting. Patented design for safety and efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6mm Tube Union Tee Fitting – SUTI Series
$29.99
Quantity: 1
Claim Your Seller Account
6mm Tube Union Tee Fitting – SUTI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

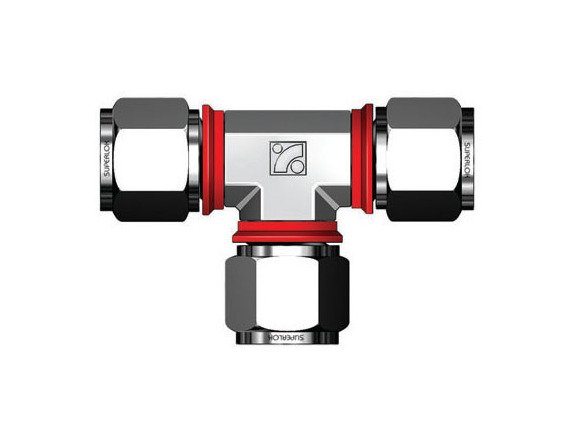

The SUTI Series 6mm Tube Outside Diameter Union Tee Fitting is a precision-engineered solution for connecting metric tubes. Crafted from a range of high-quality materials including Alloy 625, Stainless Steel, and more, this fitting ensures secure connections with its i-Fitting® components. Unique features like the built-in gap gauge check ring enhance safety, prevent over-tightening, and boost productivity in high-pressure environments. Engineered with patented design by BMT, this fitting is ideal for valve connections, offering reliability, durability, and ease of use.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

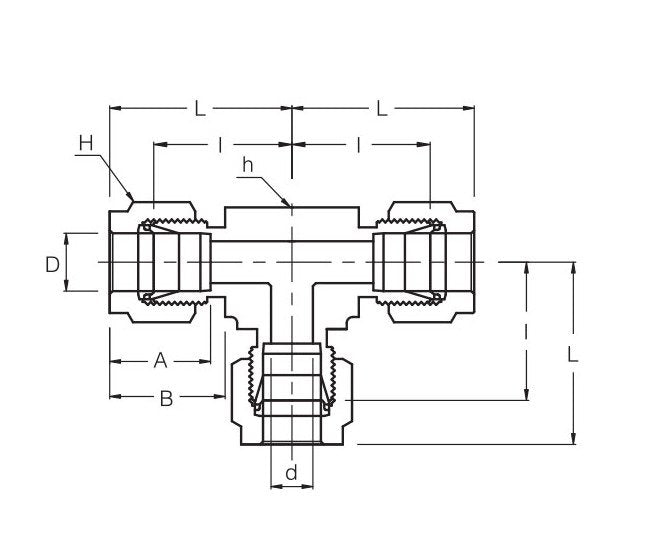

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
19.6 mm
Technical Specs Dimension L
27.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
