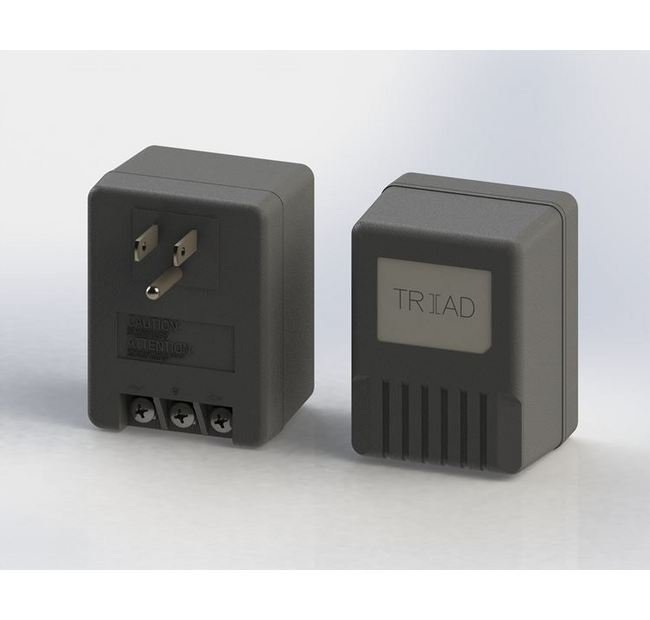

6VAC 2000ma Wall Plug-In Power Supply Level VI cULus
6VAC 2000ma Wall Plug-In Power Supply Level VI cULus
SKU:WAL-51eee2
Upgrade to our efficient 6VAC 2000mA Wall Plug-In Power Supply. cULus certified, Level VI compliant for reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6VAC 2000ma Wall Plug-In Power Supply Level VI cULus
$29.99
Quantity: 1
Claim Your Seller Account
6VAC 2000ma Wall Plug-In Power Supply Level VI cULus
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

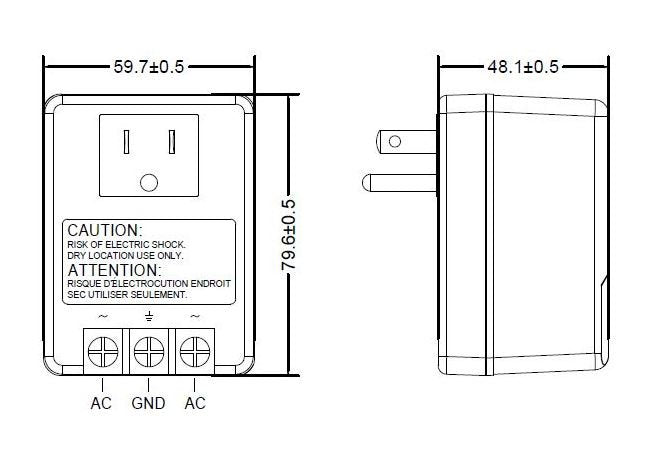

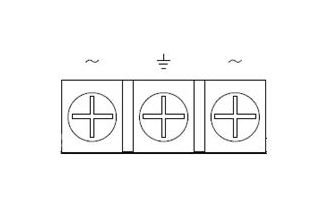

Upgrade your power supply with our 6VAC @ 2000mA Wall Plug-In Power Supply. This Level VI compliant supply with screw terminals and pass-through ground ensures efficient power conversion. Measuring 79.6mm in height, 59.7mm in width, and 48.1mm in depth, this supply meets UL and cULus standards for reliable performance. With a primary input voltage of 120VAC, 60Hz frequency, and 82.96% average efficiency, this power supply is ideal for both consumer and institutional use.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
6.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 7.8 V
Specifications Secondary Output Current Ac
2000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
6 V
Specifications Stock
Yes
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
