6VAC Wall Plug-In Power Supply, 2000mA, UL Level VI
6VAC Wall Plug-In Power Supply, 2000mA, UL Level VI
SKU:WAL-34e21c
Get reliable power with the 6VAC Wall Plug-In Supply, UL Level VI compliant. Efficient and safe for all your external power needs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6VAC Wall Plug-In Power Supply, 2000mA, UL Level VI
$29.99
Quantity: 1
Claim Your Seller Account
6VAC Wall Plug-In Power Supply, 2000mA, UL Level VI
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

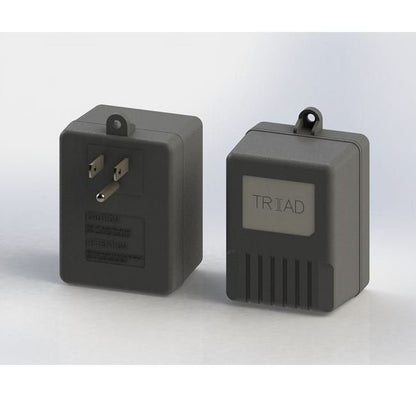

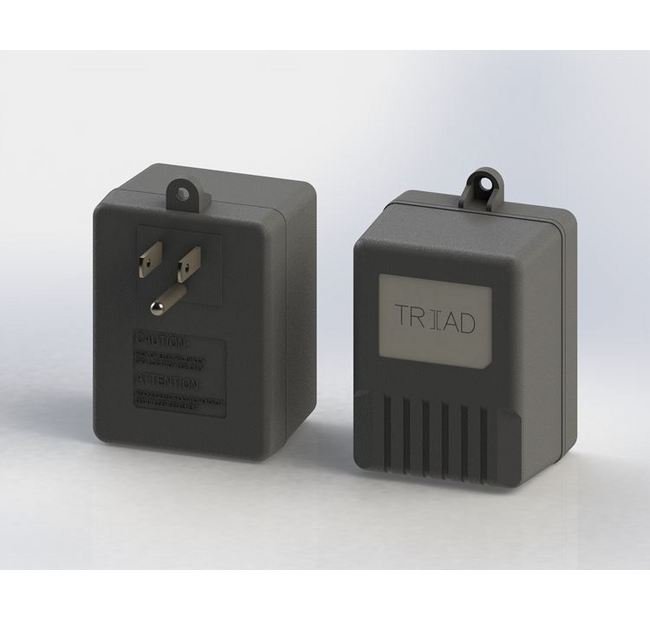

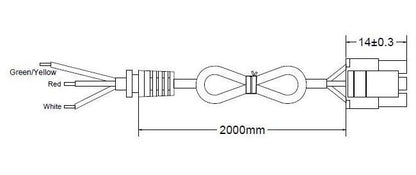

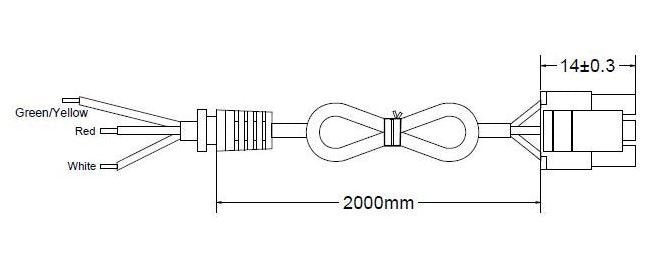

The 6VAC Wall Plug-In Power Supply is a reliable external power source designed for efficiency and performance. It features a primary input voltage of 120VAC, delivering a secondary output voltage of 6VAC with a current rating of 2000mA. This power supply meets UL Level VI standards, ensuring high-quality and safety. With its compact design, mounting tab, and 2-meter cord, it offers versatility and convenience for various applications.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
18 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

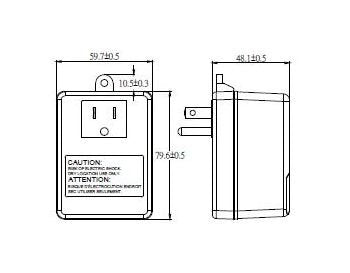

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
6.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 7.8 V
Specifications Secondary Output Current Ac
2000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
6 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
