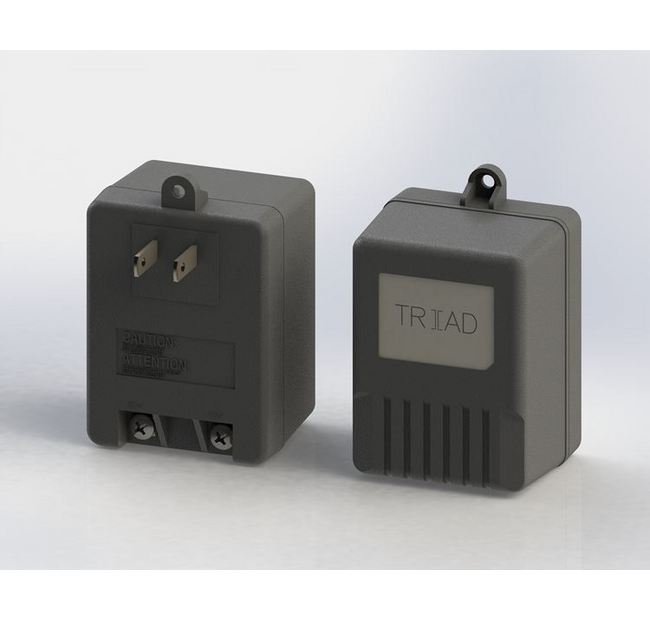

6VAC Wall Plug-In Power Supply, 2000mA, UL Level VI, Screw Terminals & Mounting Tab
6VAC Wall Plug-In Power Supply, 2000mA, UL Level VI, Screw Terminals & Mounting Tab
SKU:WAL-e9343c
Efficient 6VAC power supply with UL Level VI compliance, ideal for consumer and institutional use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6VAC Wall Plug-In Power Supply, 2000mA, UL Level VI, Screw Terminals & Mounting Tab
$29.99
Quantity: 1
Claim Your Seller Account
6VAC Wall Plug-In Power Supply, 2000mA, UL Level VI, Screw Terminals & Mounting Tab
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

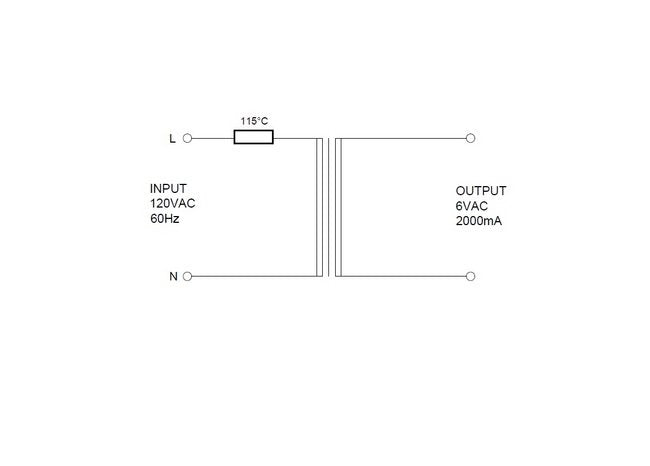

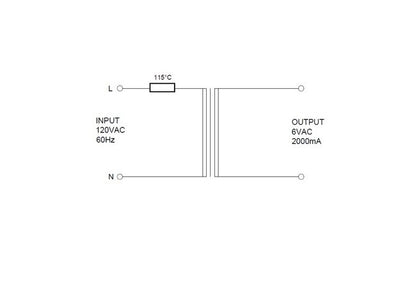

The 6VAC Wall Plug-In Power Supply is a reliable and efficient solution for both consumer and institutional applications. With a primary input voltage of 120VAC and an output voltage of 6VAC at 2000mA, this power supply ensures stable and consistent power delivery. It meets UL Level VI efficiency standards, offering energy savings and reduced standby power consumption. The compact design with screw terminals and a mounting tab provides easy installation and secure connectivity. Ideal for various external power source applications, this power supply is built to deliver performance and reliability.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

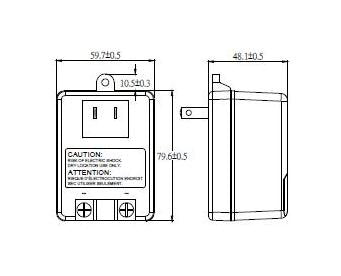

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
6.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 7.8 V
Specifications Secondary Output Current Ac
2000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
6 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
