6VAC Wall Plug-In Power Supply, Level VI - 2000mA, cULus Certified
6VAC Wall Plug-In Power Supply, Level VI - 2000mA, cULus Certified
SKU:WAL-c2e9ac
Upgrade to our efficient 6VAC Wall Plug-In Power Supply for reliable performance and cULus certification. Ideal for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6VAC Wall Plug-In Power Supply, Level VI - 2000mA, cULus Certified
$29.99
Quantity: 1
Claim Your Seller Account
6VAC Wall Plug-In Power Supply, Level VI - 2000mA, cULus Certified
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

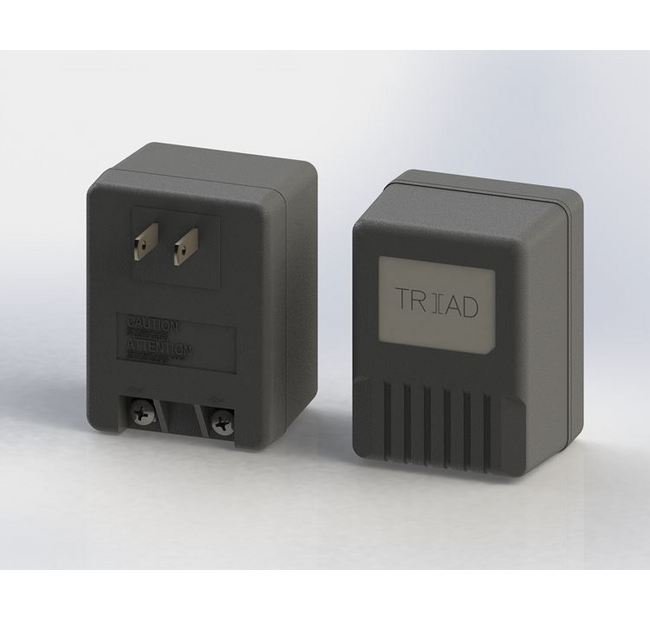

Enhance your power supply setup with our 6VAC Wall Plug-In Power Supply. With a primary input voltage of 120VAC, secondary output current of 2000mA, and an average efficiency of 82.96%, this power supply is optimized for reliability and performance. Measuring at 79.6mm height, 59.7mm length, and 48.1mm depth, this compact unit is designed for easy installation and secure connection with screw terminals. Certified with cULus and meeting Level VI efficiency standards, this power supply is ideal for both consumer and institutional applications.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

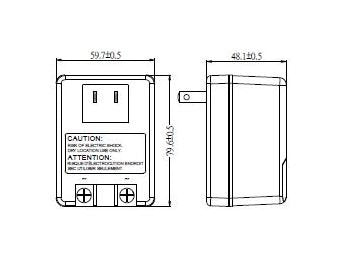

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
6.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 7.8 V
Specifications Secondary Output Current Ac
2000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
6 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
