6x1.5 PVC Intermediate Spacer for Underground Ducts
6x1.5 PVC Intermediate Spacer for Underground Ducts
SKU:PVC-0ca723
Secure and align duct banks effortlessly with our 6x1.5 PVC Spacer for fast, uncomplicated field assembly.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
6x1.5 PVC Intermediate Spacer for Underground Ducts
$129.99
Quantity: 1
Claim Your Seller Account
6x1.5 PVC Intermediate Spacer for Underground Ducts
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

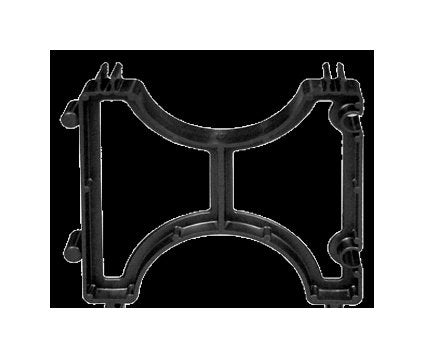

Ensure secure and precise alignment of duct banks with our 6x1.5 PVC Intermediate Spacer. This spacer features interlocking modules that prevent separation during backfilling. With a completely locked-in construction, field assembly is fast and secure, requiring only two components. The spacers lock firmly together vertically, slide together horizontally, and can be used for EB and DB installations. Compliant with industry standards, this spacer streamlines installation and ensures long-term stability for underground conduit systems.
Product Specifications
Features
Alignment of the duct bank sections is uncomplicated with this completely locked-in construction. | Banding is not necessary. | Field Assembly is fast and secure. | Only two components, base and intermediate, are needed. | Spacers lock firmly together, preventing separation. | They snap together, vertically, slide together horizontally. | To prevent the top tier from floating during encased burial, we recommend using tie wire, cap straps, or a base spacer on the top run for a flat surface during concrete encasement depending on your job specifications.Used in both EB and DB installations | With the Vertical-lok spacer, ducts are accurately separated.
Specifications Pipe Diameter
6 in
Specifications Pipe Separation
1 1/2 in
Specifications Standard Pack
100
Specifications Type
Single Intermediate Spacer
Specifications Weight
24 lb
