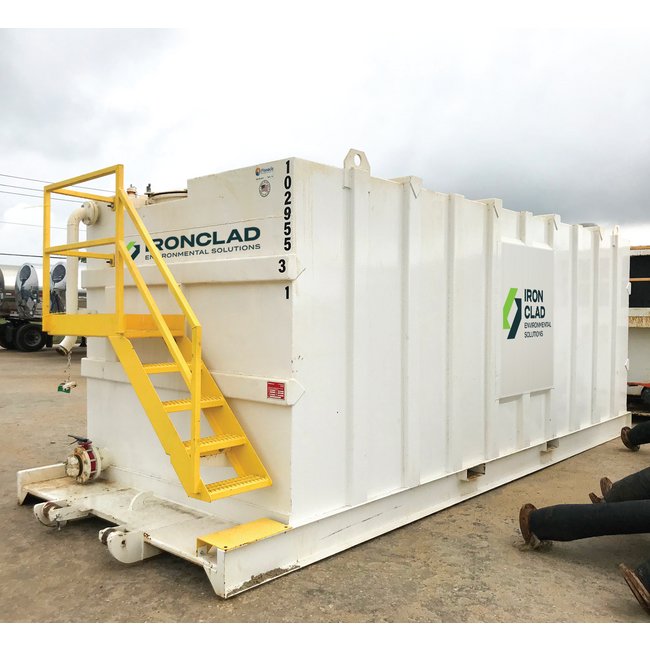

7,140 gal Double Wall Steel Mini Frac Tank
7,140 gal Double Wall Steel Mini Frac Tank
SKU:TAN-7fec30
Compact yet robust 7,140 gal Double Wall Steel Mini Frac Tank for industrial sites with limited space. Durable construction, advanced safety features.
Regular price
$15,999.99
Regular price
Sale price
$15,999.99
Unit price
per
Initiate Order
7,140 gal Double Wall Steel Mini Frac Tank
$15,999.99
Quantity: 1
Claim Your Seller Account
7,140 gal Double Wall Steel Mini Frac Tank
$15,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 7,140-gallon Double Wall Steel Mini Frac Tank is designed for compact industrial sites like refineries, construction, and manufacturing facilities. With a reduced footprint yet impressive capacity, this tank offers the same functionality as standard models. Constructed with durable materials and featuring advanced safety features, it serves as an ideal solution for temporary liquid containment needs in restricted spaces.
Product Specifications
Construction Floor
1/4 in. A36 Plate
Construction Long Sill
6 x 2 x 1/4 in. Tubing
Construction Walls
1/4 in. A36 Plate (Interior) | 3/16 in. A36 Plate (Exterior)
Construction X Members
1/4 in. A36 Plate
Dimensions And Weight Capacity
7200 gal | 170 BBL
Dimensions And Weight Inside Height
8 ft 2 in.
Dimensions And Weight Inside Length
19 ft 3 in.
Dimensions And Weight Inside Width
5/16 in.
Dimensions And Weight Outside Height
5 ft 7-3/4 in.
Dimensions And Weight Outside Length
23 ft 2 in.
Dimensions And Weight Outside Width
8 ft 6 in.
Dimensions And Weight Tare Weight
18,000 lb
Features Blind Flange
Two 4 in. (Roof)
Features Fork Pockets
12 x 6
Features Manways
Combo Manway (Curb) | One 22 in. and 36 in. | Two 22 in. Manways (Roof)
Features Platform
Outside Rail Construction (36-1/2 in. Inside Rails)
Features Valves
One 4 in. Drain (Front) | One 4 in. Drain (Rear) | One 8 in. P/V Valve (Roof)
Technical Specs Brands
IRONCLAD Environmental Solutions
