7/16" Hot Dip Galvanized Chain Shackles - Federal Spec RR-C-271D

Name: 7/16" Hot Dip Galvanized Chain Shackles - Federal Spec RR-C-271D
Brand: Lexco Cable Manufacturing
SKU: WIR-cc4999
Price: 14.99 USD
Availability: OutOfStock

SKU:WIR-cc4999

High-strength 7/16" Chain Shackles for secure lifting and towing operations. Conforms to Federal Spec RR-C-271D.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

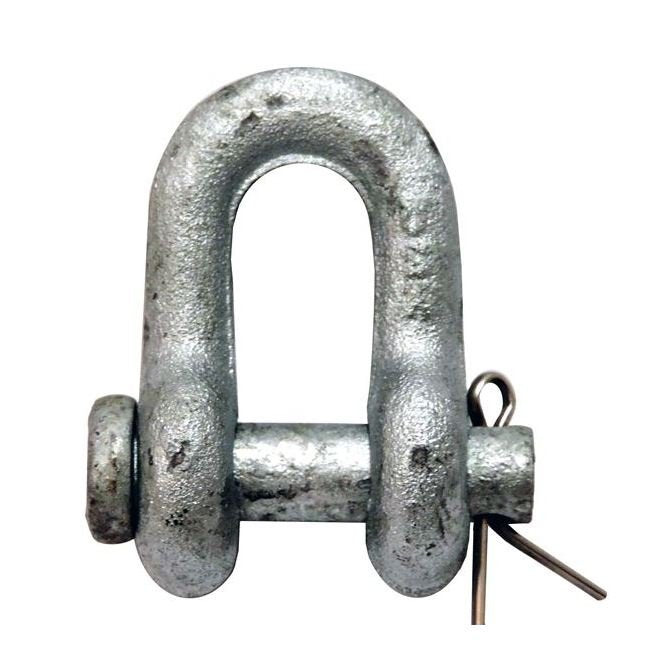

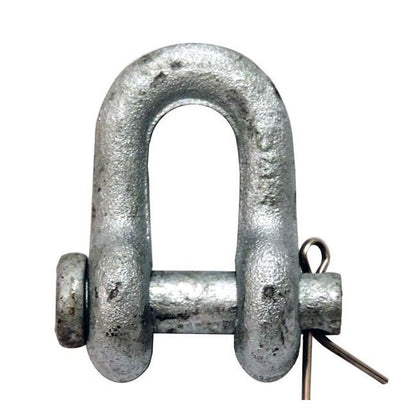

The 7/16" Chain Shackles Round Pin is forged to meet Federal Specification RR-C-271D, Type IVB, Grade A, Class 1. With an ultimate load 6 times the working load limit, this shackle provides superior strength and reliability. Quenched, tempered, and featuring an alloy pin, it ensures safety in lifting and towing applications.

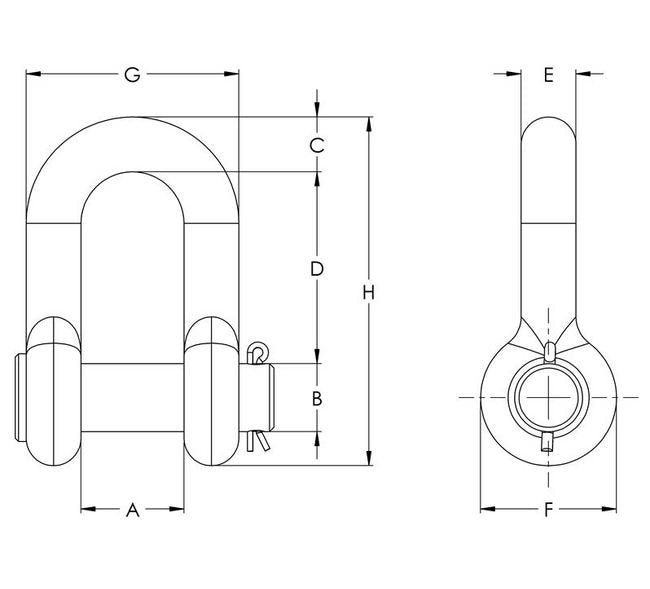

Product Specifications

Specifications A In

0.75

Specifications B In

0.5

Specifications C In

0.44

Specifications D In

1.44

Specifications E In

0.44

Specifications F In

1.06

Specifications G In

1.63

Specifications H In

2.66

Specifications M In

2.38

Specifications Nominal Size In

7/16

Specifications Weight Lbs

0.4

Specifications Wll Tons

1.5

CAGE

0T9L4

NAICS

332999

PSC

5340
