7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Pin

7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Pin

SKU:WIR-a0f089

Versatile 7/16" Stainless Steel Anchor Shackle for secure lifting & towing needs. Meets federal specifications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Pin

7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Pin

$29.99

Quantity: 1

Claim Your Seller Account

7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Pin

7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Pin

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

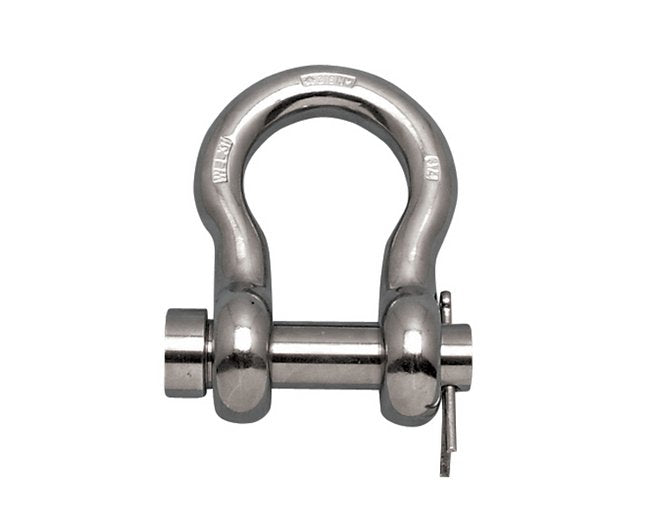

The 7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Round Pin is an essential component for wire rope loops used in lifting or towing applications. Crafted from durable 316-NM stainless steel, this anchor shackle is drop forged, import quality, and load-rated to 2,000 lb. It meets federal specification RR-C-271F, type IVA, class 1 standards, except 316 stainless, and is marked to the nearest fractional ton, ensuring reliability and safety in anchor operations.

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVA, class 1, except 316 stainless. Marked to the nearest fractional ton.

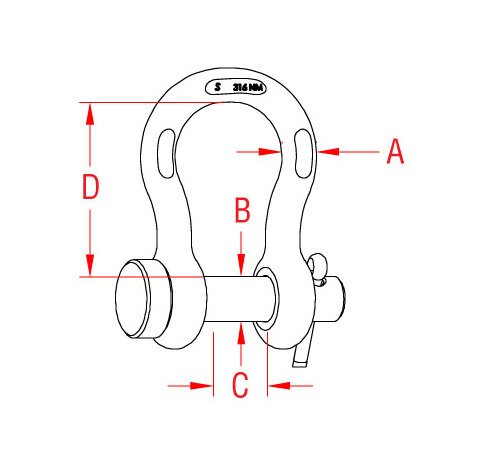

Specifications Applications
Anchor
Specifications C
0.72 "
Specifications D
1.77 "
Specifications Dimension B
0.50 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
7/16 "
Specifications Weight
0.49 lb
Specifications Wll
2,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
