7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin

Name: 7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-7eac28
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-7eac28

Heavy-duty 7/16" Stainless Steel Anchor Shackle for safe and reliable anchor applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

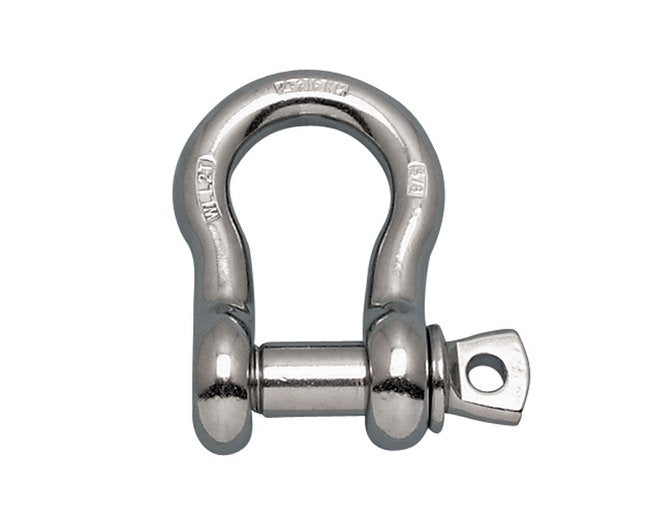

The 7/16 Inch Size A 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin is designed for heavy-duty anchor applications. Constructed from corrosion-resistant 316-NM stainless steel, this shackle is drop forged for durability and safety. With a Working Load Limit (WLL) of 2,000 lb, it is load rated and marked to compliance with federal specification RR-C-271F, type IVA, class 2, except 316 stainless.

Product Specifications

Note 0

I/A/W federal. Specification RR-C-271F, type IVA, class 2, except 316 stainless. Marked to the nearest fractional ton.

Specifications Applications

Anchor

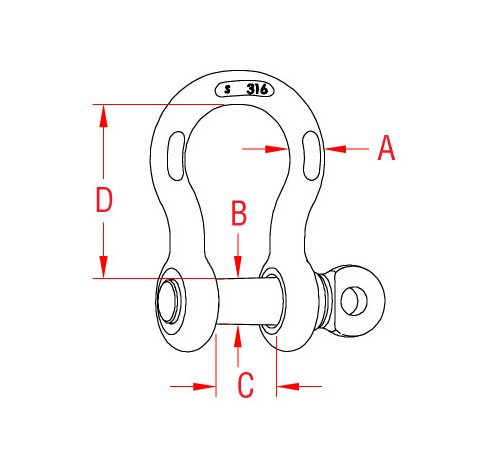

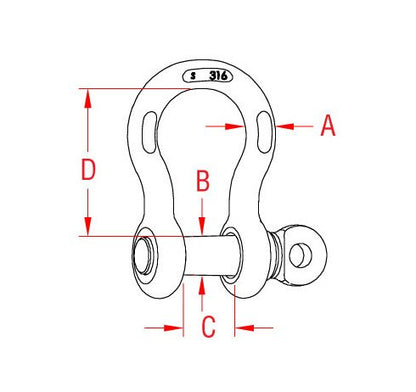

Specifications C

0.72 "

Specifications D

1.77 "

Specifications Dimension B

0.50 "

Specifications Key Features

Drop Forged | Import | Load Rated

Specifications Material

316-NM Stainless Steel

Specifications Size A

7/16 "

Specifications Weight

0.50 lb

Specifications Wll

2,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

7/16 Inch 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin
