7/16 Inch 316-NM Stainless Steel Shackle Bolt

Name: 7/16 Inch 316-NM Stainless Steel Shackle Bolt
Brand: Lexco Cable Manufacturing
SKU: WIR-4a642d
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-4a642d

High-strength 7/16" stainless steel shackle bolt for secure lifting and towing.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

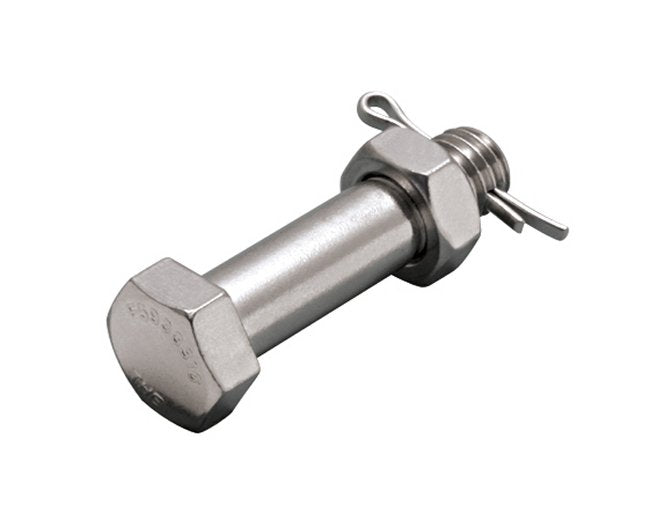

The 7/16 Inch 316-NM Stainless Steel Shackle Bolt is a crucial component for wire rope loops used in lifting or towing applications. Crafted from 316-NM stainless steel, this bolt is drop-forged, import-rated, and load-rated up to 2,000 lb, ensuring exceptional strength and durability. It comes complete with cotter pin and nut for easy installation, making it a reliable choice for heavy-duty operations.

Product Specifications

Note 0

Replacement bolt. Compatible with chain (P0115-BD) & anchor (P0116-BD) shackle bodies. Cotter pin and nut included.

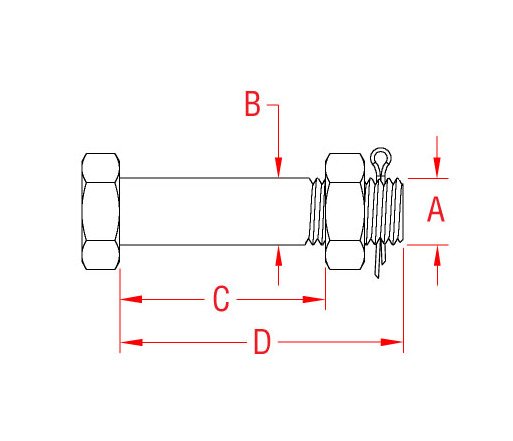

Specifications C

1.61 "

Specifications D

2.30 "

Specifications Dimension A

1/2 in.-13

Specifications Dimension B

0.50 "

Specifications Key Features

Drop Forged | Import | Load Rated

Specifications Material

316-NM Stainless Steel

Specifications Size

7/16 "

Specifications Weight

0.12 lb

Specifications Wll

2,000 lb

CAGE

0T9L4

NAICS

332722

PSC

5306

7/16 Inch 316-NM Stainless Steel Shackle Bolt
