7/16in Red Iron Oxide Pyrotex Knit Firesleeve
7/16in Red Iron Oxide Pyrotex Knit Firesleeve
SKU:FIR-5dfd98
Protect critical systems with 7/16in Red Iron Oxide Pyrotex Firesleeve, offering high heat resistance and flame protection.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
7/16in Red Iron Oxide Pyrotex Knit Firesleeve
$129.99
Quantity: 1
Claim Your Seller Account
7/16in Red Iron Oxide Pyrotex Knit Firesleeve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

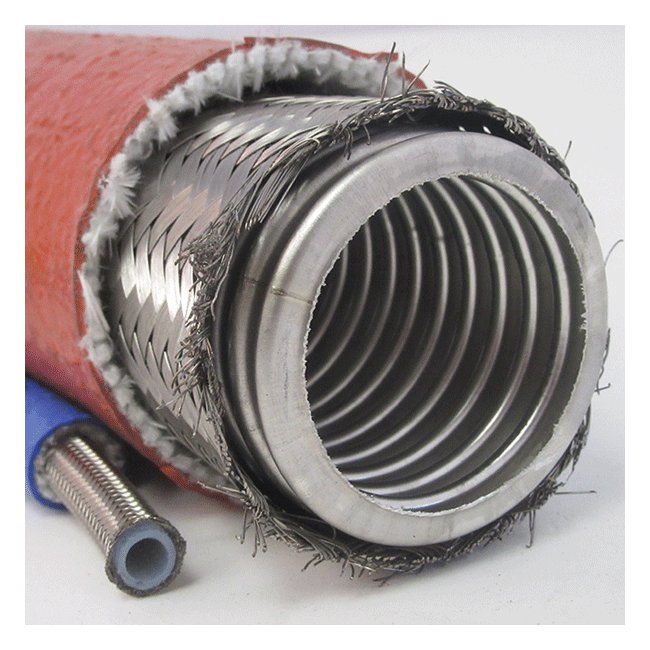

The 7/16 inch Red Iron Oxide Pyrotex Knit Firesleeve from Atlantex provides exceptional thermal protection with its self-extinguishing silicone polymer coating. This firesleeve shields critical components from direct flame, high heat, and molten metal, ensuring optimal performance in industrial applications. With a continuous working temperature of 500°F and meeting UL 94 HB and UL 94V-0 requirements, it enhances safety, energy efficiency, and component durability.
Product Specifications
Accreditations Accreditations

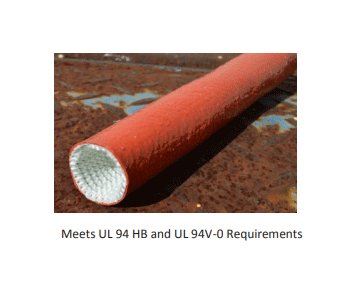

Meets UL 94 HB Requirements.Meets UL 94V-0 Requirements.Private brand printing services.REACh & RoHS compliant.Bulk lengths available to reduce scrap.Extensive stock for short lead times.
Additional Information Additional Information
Pyrotex Firesleeve withstands continuous exposure up to 500ºF and short-term exposure up to 2200ºF, is self-extinguishing and will not burn, or support combustion, and does not emit toxic smoke. This product displays excellent resistance to common industrial, automotive, and marine fluids, and provides lines with good protection against mechanical wear.
Availability Availability

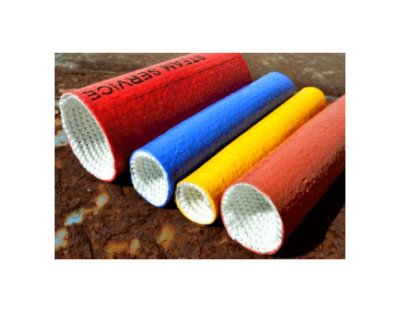

Pyrotex Knit is a stock product, allowing for a fast turnaround time.Bulk lengths available for scrap minimization.Firesleeve is supplied in 50 ft. coils and 100 ft. boxes standard.Available in diameters from 1/4" (6mm) to 4" (102mm).Available in standard RIO, other colors are available upon request.
Characteristics Characteristics
Self-extinguishing thick-walled insulating sleeve for excellent thermal protection.Sheds molten metal splash and resists direct flame impingement.Lightweight and highly flexible composite protective sleeve-,exceptional elasticity.Will not melt, burn, or support combustion- does not emit toxic smoke.Resistant to hydraulic fluids, fuels, lubricating oil, and water.Extends service life of assemblies and provides personnel protection.
Material Composition Material Composition
Highly texturized E-Glass fiber.Tightly knitted insulating substrate.High-temperature Silicone polymer.Various colored coatings available.
Specifications Color
Red Iron Oxide (RIO)
Specifications Continuous Working Temperature
500 ºF | 260 ºC
Specifications Inside Diameter
7/16 in | 11 mm
Specifications Short Term Working Temperature
2200 ºF | 1200 ºC
Specifications Standard Length
100 ft. boxes | 50 ft. coils
