7.1mm Split Rivet Nut for Metric Applications

Name: 7.1mm Split Rivet Nut for Metric Applications
Brand: Ornit USA
SKU: IMP-f74bec
Price: 12.99 USD
Availability: OutOfStock

SKU:IMP-f74bec

Durable 7.1mm Split Rivet Nut for secure joint assembly in industrial applications. Steel construction with zinc finish.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

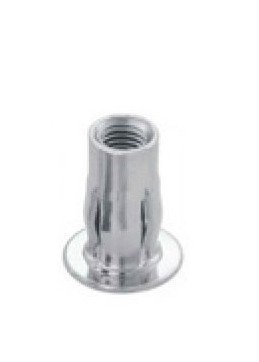

The 7.1mm Minimum Grip Size Split Rivet Nut is a high-quality fastening solution suitable for industrial, automotive, and construction projects. Made from durable steel with a zinc finish, it offers reliable performance and corrosion resistance. With dimensions designed to accommodate M8 x 1.25 threads and grip sizes ranging from 7.1mm to 12.7mm, this rivet nut provides secure joint assembly. It also meets stainless steel & aluminum material options for specific requirements.

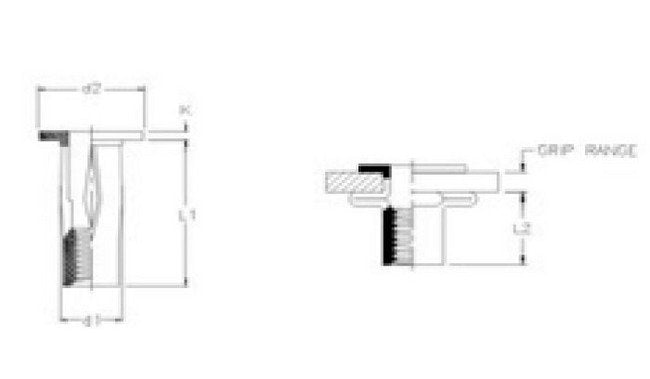

Product Specifications

Dimensions Dimension D1

12.47 mm | 12.57 mm

Dimensions Dimension D2

18.80 mm | 19.56 mm

Dimensions Dimension K

1.45 mm | 1.7 mm

Dimensions Dimension L1

34.54 mm | 35.32 mm

Dimensions Maximum Grip Size

12.70 mm

Dimensions Maximum Hole Size

12.85 mm

Dimensions Minimum Grip Size

7.10 mm

Dimensions Minimum Hole Size

12.70 mm

Dimensions Thread Size

M8 x 1.25

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc

Technical Specs Material

Steel

Technical Specs Maximum Dimension L2

19.69 mm
