7.5 Inch Column Servo Offset Drill Press with Chuck Spindle
7.5 Inch Column Servo Offset Drill Press with Chuck Spindle
SKU:DRI-80ab7c
Achieve precision and versatility with the 7.5-inch Servo Drill Press. Ideal for laboratory and production work.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
7.5 Inch Column Servo Offset Drill Press with Chuck Spindle
$899.99
Quantity: 1
Claim Your Seller Account
7.5 Inch Column Servo Offset Drill Press with Chuck Spindle
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

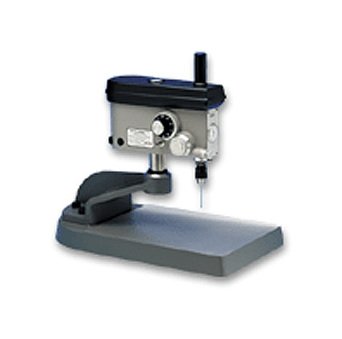

The 7.5 Inch Column Servo Offset Drill Press is ideal for laboratory, prototype, and precision production work. With a 17 inch circle drilling capacity and features like high accuracy down stop control, variable speed spindle, and a wide selection of bases and accessories, this drill press ensures precision and versatility. Meet your drilling needs with the Inch and Metric versions, Albrecht chuck for quick drill changes, and a wide range of drill capacities. Compliant with federal procurement standards, this drill press is a reliable choice for institutional buyers.
Product Specifications
Features Features
Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change;standard 0-1/8" / 0-3 mm; optional 0-1/16" / 0-1.5 mmWW collet versions for less run out and improved accuracy;0.0039"-0.252" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control(0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16" in inconelto 1/8" in steelto 3/16" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps(220V/115V transformer available)

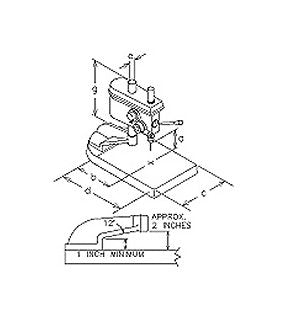

Technical Specs Base
Fly-cut cast aluminum base with fine grain cast iron offset and elbow
Technical Specs Brands
Servo
Technical Specs Column Diameter Through Head E
1.25 in | 31 mm
Technical Specs Column Length G
7.5 in | 191 mm
Technical Specs Footprint Depth
18.5 in | 470 mm
Technical Specs Footprint Width
10.5 in | 267 mm
Technical Specs Maximum Distance Of Chuckcollet To Basea
6 in | 152 mm
Technical Specs Mt3 Spindle Weldon
Chuck
Technical Specs Overall Height
18 in | 457 mm
Technical Specs Throat Depth B Spindle Cl To Column
8.5 in | 216 mm
Technical Specs Weight
27 lb | 12.2 kg
Technical Specs Working Base Area Depth D
13.25 in | 324 mm
Technical Specs Working Base Area Width C
9.75 in | 248 mm
