7.5 kV Ceramic Capacitors - HH58 Series
7.5 kV Ceramic Capacitors - HH58 Series
SKU:CER-fa83e5
High-performance 7.5 kV Ceramic Capacitors for demanding applications, featuring 700 pF capacitance and robust construction.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
7.5 kV Ceramic Capacitors - HH58 Series
$49.99
Quantity: 1
Claim Your Seller Account
7.5 kV Ceramic Capacitors - HH58 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

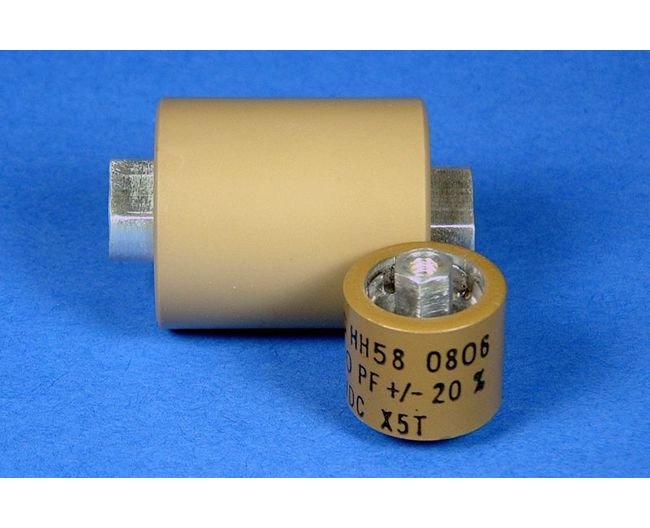

The HH58 Series Ceramic Capacitors are expertly designed for high capacitance and 7.5 kVDC power ratings, making them ideal for demanding applications. Enclosed in a broadcast barrel package with a choice of metric or English terminals, these capacitors feature three Class II dielectrics for reliable performance. With a capacitance of 700 pF, a VMAX (DC) of 7.5 kV, and a compact design, these capacitors offer superior operational efficiency. They maintain excellent performance in a wide temperature range from -55 to +85 ºC and ensure high insulation resistance for enhanced durability and longevity.
Product Specifications
Specifications Cap
700 pF
Specifications Capacitance Tolerance
±10% | ±20% Standard
Specifications Dielectric Characteristic
+22%, -33% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5T
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC
Specifications Fh
9.85 MHz
Specifications Fl
0.00485 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
5.10 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
0.6 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 6 inch-pounds or less (with standard terminal)Maximum applied torque to be 17 inch-pounds or less (with solid terminal)

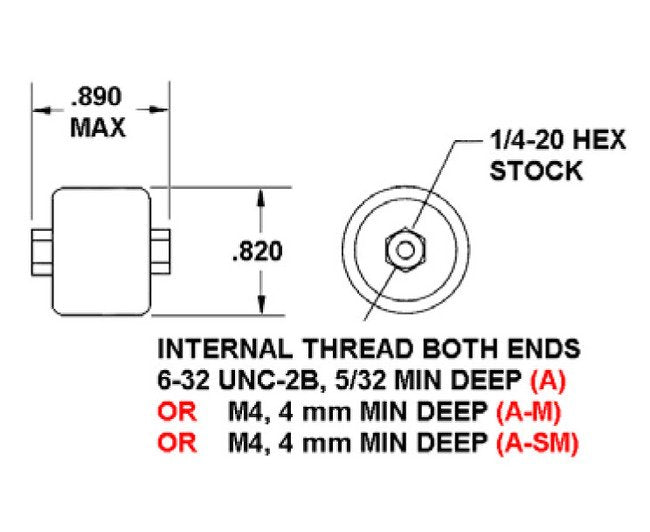

Specifications Thread
6-32
Specifications Vmax Dc
7.5 kV
