7.5V DC Output Voltage Wall Plug-In Power Supply

Name: 7.5V DC Output Voltage Wall Plug-In Power Supply
Brand: Triad Magnetics
SKU: WAL-5bc334
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-5bc334

Reliable 7.5V DC Output Wall Plug-In Power Supply for consistent performance and compatibility.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

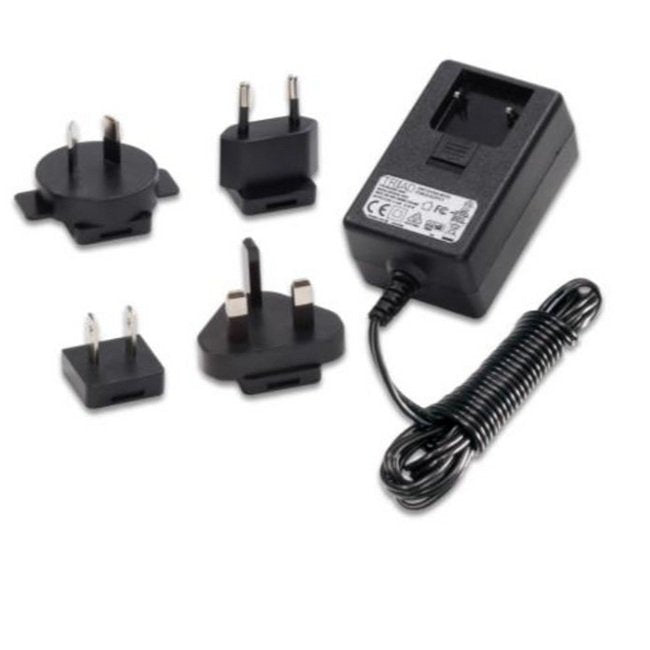

Experience reliable power supply with our 7.5V DC Output Wall Plug-In Power Supply. With an input voltage range of 100-240V, interchangeable input plugs, and Level VI efficiency, this switch mode power supply offers a steady output of 7.5V at 3.2A. Its compact dimensions and positive polarity center make it ideal for various applications. Compliant with industry standards, this power supply ensures efficient performance and compatibility.

Product Specifications

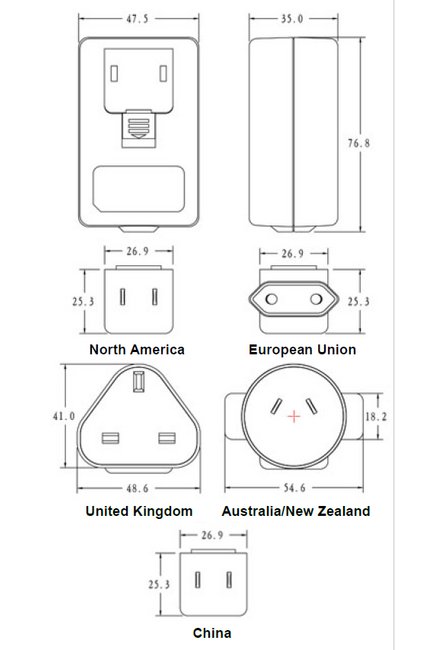

Case Dimensions Depth D

1.38 in | 35.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.87 in | 47.50 mm

Electrical Specifications At 25 Degree Celsius C Temperature Inp

50 to 60 Hz

Electrical Specifications At 25 Degree Celsius C Temperature Out

3.2 A

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Polarity Center

Positive

Specifications Type

Switchmode

7.5V DC Output Voltage Wall Plug-In Power Supply
