7.5V DC Output Voltage Wall Plug-In Power Supply
7.5V DC Output Voltage Wall Plug-In Power Supply
SKU:WAL-9e8b4c
Versatile 7.5V DC Output Wall Plug Power Supply, ideal for consumer & institutional use. High efficiency & compact design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
7.5V DC Output Voltage Wall Plug-In Power Supply
$29.99
Quantity: 1
Claim Your Seller Account
7.5V DC Output Voltage Wall Plug-In Power Supply
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

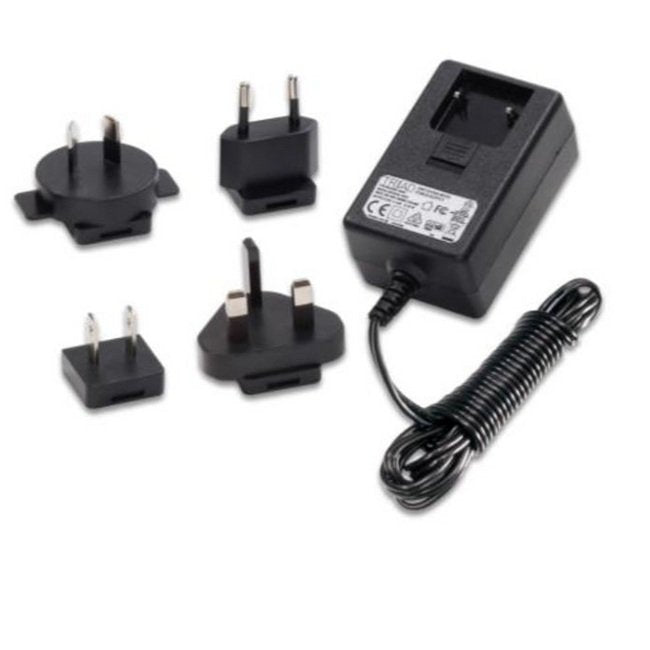

The 7.5V DC Output Voltage Wall Plug-In Power Supply is a versatile and efficient solution for a wide range of electronic devices. With a 100-240V input range and interchangeable input plugs, it offers flexibility for both consumer and institutional applications. This Switch Mode Power Supply features Level VI efficiency, ensuring optimal energy usage. The negative polarity center and compact design make it ideal for various installations. With output specifications of 7.5V and 3.2A, this power supply meets high standards for performance and reliability.
Product Specifications

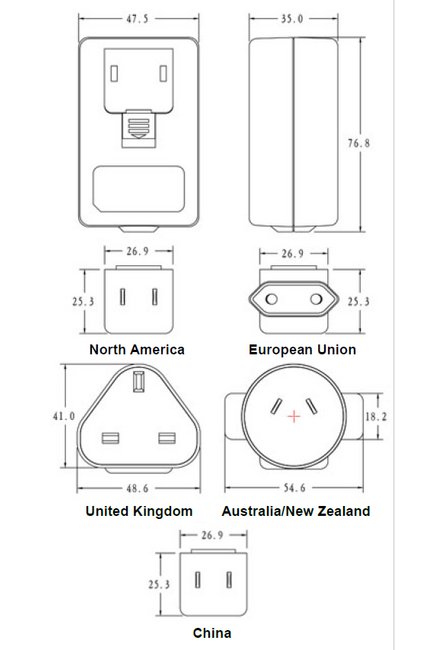

Case Dimensions Depth D
1.38 in | 35.00 mm
Case Dimensions Height H
3.02 in | 76.80 mm
Case Dimensions Width W
1.87 in | 47.50 mm
Electrical Specifications At 25 Degree Celsius C Temperature Inp
50 to 60 Hz
Electrical Specifications At 25 Degree Celsius C Temperature Out
3.2 A

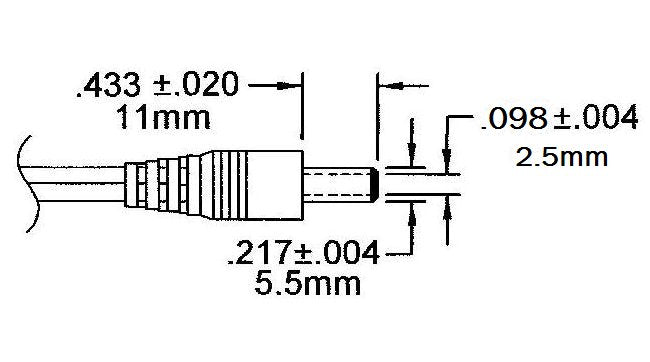

Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Polarity Center
Negative
Specifications Type
Switchmode
