7.5V DC Output Voltage Wall Plug-In Switch Mode Power Supply - Negative Polarity Center

Name: 7.5V DC Output Voltage Wall Plug-In Switch Mode Power Supply - Negative Polarity Center
Brand: Triad Magnetics
SKU: WAL-52f99a
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-52f99a

Get reliable 7.5V DC output with this interchangeable plug power supply for efficient performance and energy savings.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

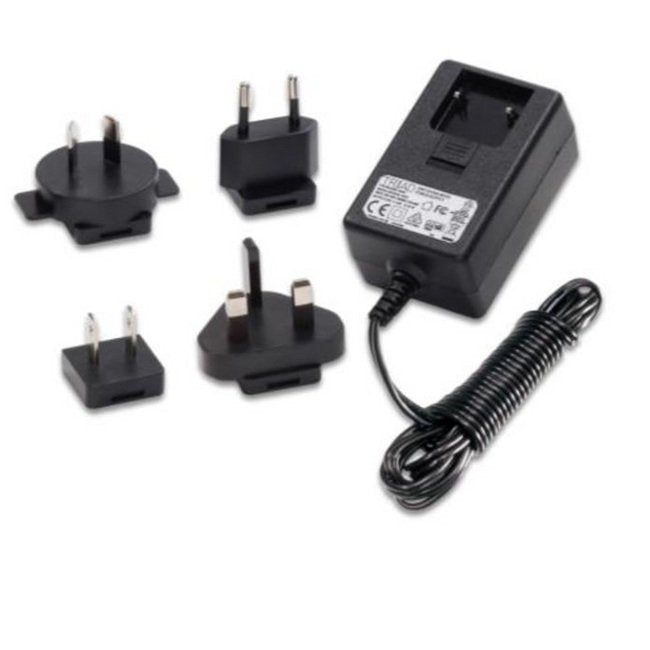

The 7.5V DC Output Wall Plug-In Power Supply features an interchangeable input plug design for versatile usage. With a high efficiency Level VI rating and 24W power output ranging from 5-24VDC, this switch mode power supply ensures optimal performance and energy savings. Operating at an input voltage range of 100-240V AC and 50-60Hz frequency, it offers stable and reliable power delivery. The compact case dimensions and durable build make it ideal for various applications.

Product Specifications

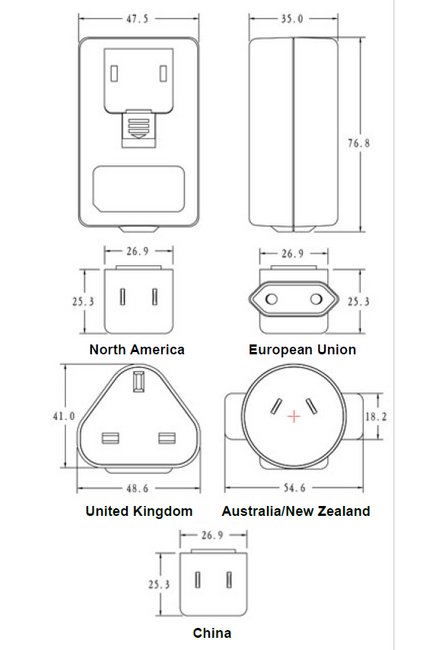

Case Dimensions Depth D

1.38 in | 35.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.87 in | 47.50 mm

Electrical Specifications At 25 Degree Celsius C Temperature Inp

50 to 60 Hz

Electrical Specifications At 25 Degree Celsius C Temperature Out

3.2 A

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Polarity Center

Negative

Specifications Type

Switchmode
