7.5V DC Wall Plug-In Power Supply with Interchangeable Input Plugs
7.5V DC Wall Plug-In Power Supply with Interchangeable Input Plugs
SKU:WAL-88f8e9
Get reliable 7.5V DC power supply with interchangeable plugs & Level VI efficiency, ideal for various uses.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
7.5V DC Wall Plug-In Power Supply with Interchangeable Input Plugs
$29.99
Quantity: 1
Claim Your Seller Account
7.5V DC Wall Plug-In Power Supply with Interchangeable Input Plugs
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

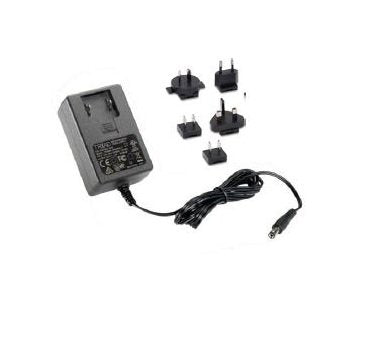

Experience reliable power supply with our 7.5V DC Wall Plug-In Power Supply. This switch mode power supply offers an input voltage range of 100-240V AC with interchangeable input plugs for flexibility. With an output current of 2.4A and Level VI efficiency, this power supply meets EISA 2007/CEC compliance, ensuring energy efficiency. It also features safety certifications like UL Class II and RoHS compliance, making it suitable for both consumer and institutional settings. The compact design and reliable performance make it ideal for a variety of applications.
Product Specifications

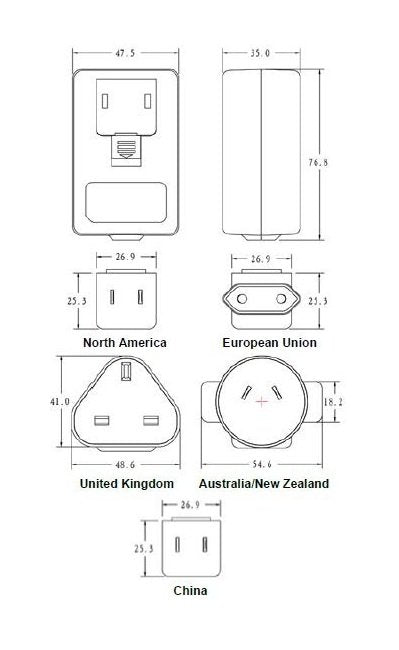

Case Dimensions Depth D
1.38 in | 35.00 mm
Case Dimensions Height H
3.02 in | 76.80 mm
Case Dimensions Width W
1.87 in | 47.50 mm
Eisa 2007cec Compliance Eisa 2007cec Compliance
This power supply meets the minimum efficiency requirements per Department of Energy and California Energy Commission.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
90 to 264 V
Electrical Specifications At 25 Degree Celsius C Temperature Ave
83.50 %
Electrical Specifications At 25 Degree Celsius C Temperature Inp
50 to 60 Hz
Electrical Specifications At 25 Degree Celsius C Temperature Lin
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Loa
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Max
150 mV
Electrical Specifications At 25 Degree Celsius C Temperature Not
Typical Meets minimum level VI efficiency
Electrical Specifications At 25 Degree Celsius C Temperature Out
2.4 A
Electrical Specifications At 25 Degree Celsius C Temperature Typ
82.62 %
Environmental Specifications Non Condensing Relative Operating H
5 to 95 %
Environmental Specifications Operating Temperature At Full Load
0 to +45 ºC
Environmental Specifications Storage Temperature
-20 to 60 ºC
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Long Nominal Output Cord Length
6 ft | 18 AWG

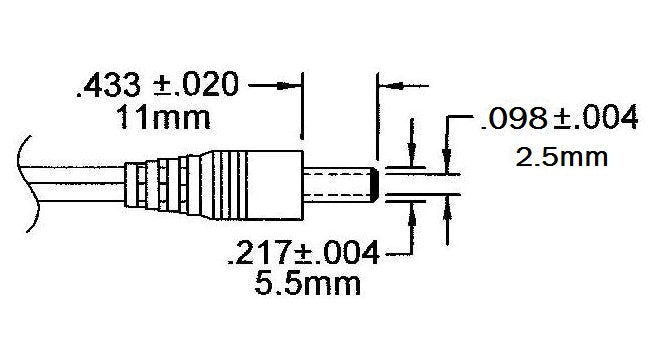

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Reliability Specifications Dielectric Strength
Hi-Pot - 4242 VDC/3 secs
Reliability Specifications Leakage Current At 264 Vac
< 0.25 mA
Reliability Specifications Maximum Dielectric Strength Hi Pot
5 mA
Reliability Specifications Warranty
5 years
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Safety And Emi Safety And Emi
UL: 62368-1 Class II, Double InsulatedUL File Number: E345519TUV: IEC 62368-1:2014 (Second Edition)AS/NZS: AS/NZS 62368. 1:2018 and AS/NZS 3112 :2017GS (S50452256): EN 62368-1: 2014 + A11RCM: RCM201901745 Rev01EMI standard: FCC part 15 Subpart B, ICES-003 Issue 6, ANSI C63.4-2014Over voltage and short circuit protected
Specifications 2007 Eisa Efficiency
VI
Specifications Type
Switchmode
