7.5V Interchangeable Input Plug Wall Power Supply
7.5V Interchangeable Input Plug Wall Power Supply
SKU:WAL-ed5b19
Versatile 24W 7.5V DC wall power supply with Level VI efficiency, interchangeable plugs, and 5-year warranty.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
7.5V Interchangeable Input Plug Wall Power Supply
$29.99
Quantity: 1
Claim Your Seller Account
7.5V Interchangeable Input Plug Wall Power Supply
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

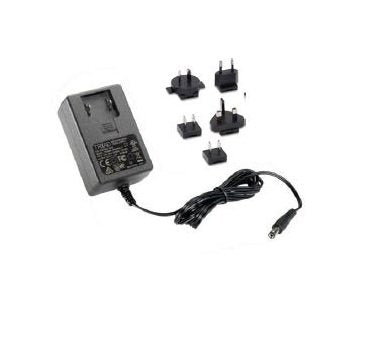

The 7.5V Interchangeable Input Plug Wall Power Supply is a versatile solution for various applications. With an input voltage range of 100-240V and interchangeable input plugs, this 24W power supply delivers a stable 7.5V DC output at 2.4A. Featuring Level VI efficiency, it meets stringent energy efficiency standards. The compact design, high reliability, and built-in safety features make it ideal for consumer electronics, office equipment, and more. Backed by a 5-year warranty, this power supply ensures long-term reliability and performance.
Product Specifications

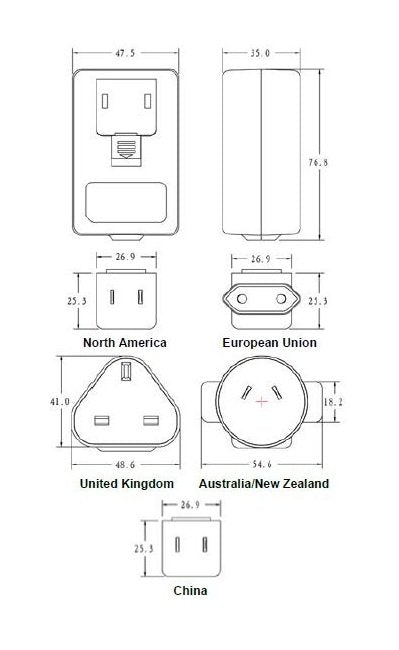

Case Dimensions Depth D
1.38 in | 35.00 mm
Case Dimensions Height H
3.02 in | 76.80 mm
Case Dimensions Width W
1.87 in | 47.50 mm
Eisa 2007cec Compliance Eisa 2007cec Compliance
This power supply meets the minimum efficiency requirements per Department of Energy and California Energy Commission.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
90 to 264 V
Electrical Specifications At 25 Degree Celsius C Temperature Ave
83.50 %
Electrical Specifications At 25 Degree Celsius C Temperature Inp
50 to 60 Hz
Electrical Specifications At 25 Degree Celsius C Temperature Lin
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Loa
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Max
150 mV
Electrical Specifications At 25 Degree Celsius C Temperature Not
Typical Meets minimum level VI efficiency
Electrical Specifications At 25 Degree Celsius C Temperature Out
2.4 A
Electrical Specifications At 25 Degree Celsius C Temperature Typ
82.68 %
Environmental Specifications Non Condensing Relative Operating H
5 to 95 %
Environmental Specifications Operating Temperature At Full Load
0 to +45 ºC
Environmental Specifications Storage Temperature
-20 to 60 ºC
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Long Nominal Output Cord Length
6 ft | 18 AWG

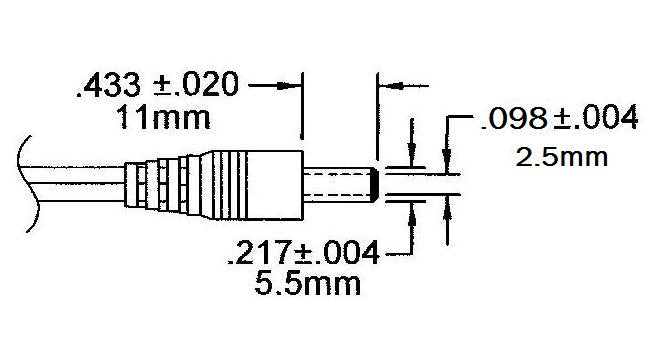

Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Reliability Specifications Dielectric Strength
Hi-Pot - 4242 VDC/3 secs
Reliability Specifications Leakage Current At 264 Vac
< 0.25 mA
Reliability Specifications Maximum Dielectric Strength Hi Pot
5 mA
Reliability Specifications Warranty
5 years
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Safety And Emi Safety And Emi
UL: 62368-1 Class II, Double InsulatedUL File Number: E345519TUV: IEC 62368-1:2014 (Second Edition)AS/NZS: AS/NZS 62368. 1:2018 and AS/NZS 3112 :2017GS (S50452256): EN 62368-1: 2014 + A11RCM: RCM201901745 Rev01EMI standard: FCC part 15 Subpart B, ICES-003 Issue 6, ANSI C63.4-2014Over voltage and short circuit protected
Specifications 2007 Eisa Efficiency
VI
Specifications Type
Switchmode
