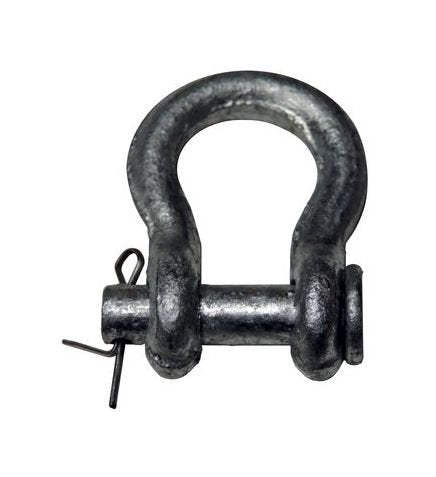

7/8" Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

7/8" Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

SKU:WIR-127b3c

Heavy-duty 7/8" Anchor Shackles Round Pin for lifting and towing applications. Compliant with Federal Specification RR-C-271D. Dependable strength and durability.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

7/8" Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

7/8" Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

$59.99

Quantity: 1

Claim Your Seller Account

7/8" Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

7/8" Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 7/8" Anchor Shackles Round Pin are hot dip galvanized and drop forged to ensure durability and strength. Compliant with Federal Specification RR-C-271D, Type IV A, Grade A, Class 1, these shackles have a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit. With a working load limit of 6 1/2 tons, these shackles are ideal for heavy lifting and towing applications. Trust in the reliability and quality of these shackles for your wire rope hardware needs.

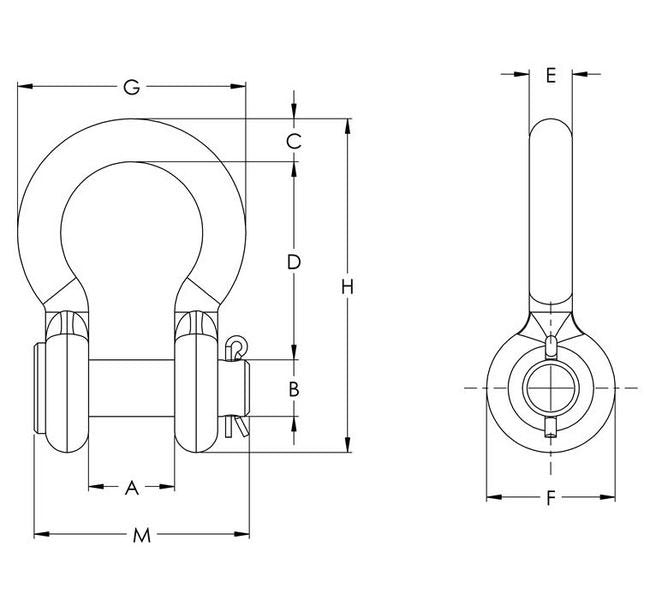

Product Specifications

Specifications A In
1.44
Specifications B In
1
Specifications C In
0.97
Specifications D In
3.31
Specifications E In
0.88
Specifications F In
2.09
Specifications G In
4.03
Specifications H In
5.83
Specifications M In
4.5
Specifications Nominal Size In
7/8
Specifications Weight Lbs
3.49
Specifications Wll Tons
6 1/2
CAGE
0T9L4
NAICS
332999
PSC
5340
