7/8 Inch 316-NM Stainless Steel Shackle Bolt

Name: 7/8 Inch 316-NM Stainless Steel Shackle Bolt
Brand: Lexco Cable Manufacturing
SKU: WIR-578aad
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-578aad

High-quality 7/8" stainless steel shackle bolt with 8,000 lb WLL. Drop forged for strength. Compatible with P0115-BD & P0116-BD shackles.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

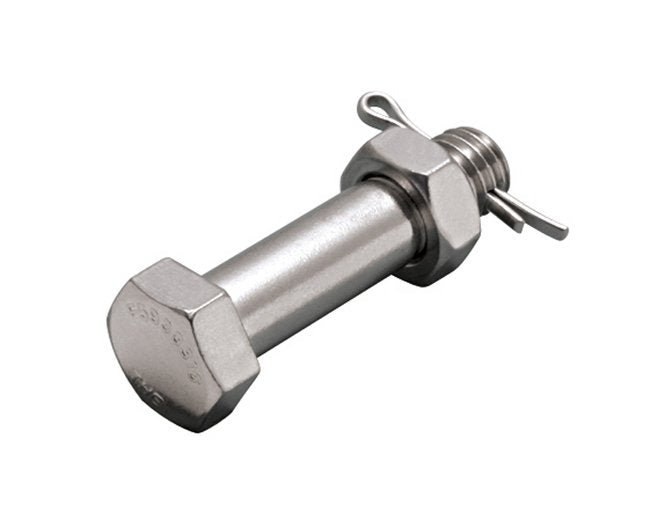

Constructed from high-quality 316-NM stainless steel, this 7/8-inch shackle bolt is a reliable choice for lifting and towing applications. With a working load limit of 8,000 lbs and drop-forged for durability, it ensures secure connections. This bolt is compatible with chain (P0115-BD) and anchor (P0116-BD) shackle bodies, making it a versatile option for various rigging needs.

Product Specifications

Note 0

Replacement bolt. Compatible with chain (P0115-BD) & anchor (P0116-BD) shackle bodies. Cotter pin and nut included.

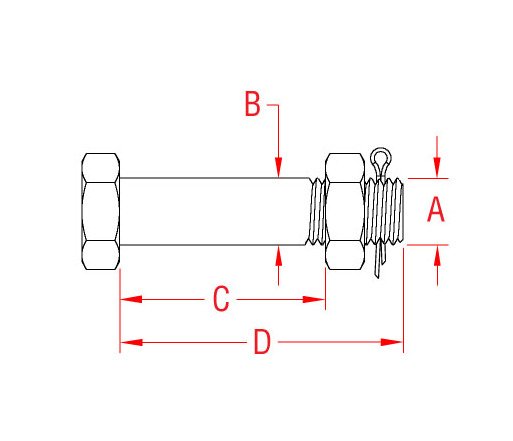

Specifications C

3.13 "

Specifications D

4.25 "

Specifications Dimension A

1 in.-8

Specifications Dimension B

1.00 "

Specifications Key Features

Drop Forged | Import | Load Rated

Specifications Material

316-NM Stainless Steel

Specifications Size

7/8 "

Specifications Weight

1.36 lb

Specifications Wll

8,000 lb

CAGE

0T9L4

NAICS

332722

PSC

5306

7/8 Inch 316-NM Stainless Steel Shackle Bolt
