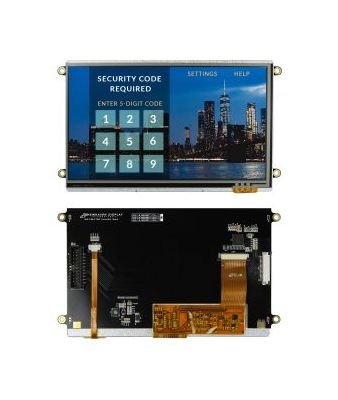

7-Inch Capacitive TFT LCD Display Module - EVE2 Thin Film Transistor (TFT)
7-Inch Capacitive TFT LCD Display Module - EVE2 Thin Film Transistor (TFT)
SKU:EVE-edd9be
Vivid 7-Inch Capacitive TFT LCD Display Module with 800x480 WVGA resolution and RGB color support. Ideal for diverse applications.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
7-Inch Capacitive TFT LCD Display Module - EVE2 Thin Film Transistor (TFT)
$65.99
Quantity: 1
Claim Your Seller Account
7-Inch Capacitive TFT LCD Display Module - EVE2 Thin Film Transistor (TFT)
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 7-Inch Capacitive TFT LCD Display Module from the EVE2 Thin Film Transistor (TFT) Modules line offers a vibrant Transmissive Red, Green, Blue (RGB) display format with 800 x 480 WVGA resolution. Designed for stock availability, this standard display features a white LED backlight, capacitive touch panel, SPI interface, and operates at 3.3V. With high-quality graphics in RGB colors, the FT813 controller ensures optimal performance. This module is compliant with RoHS, REACH, and Lead-free standards, making it ideal for various applications.
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
104 mm
Dimension Outline Width
180.1 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT813
Specifications Country Of Origin
China
Specifications Diagonal Size
7.0 in | 177.8 mm
Specifications Display Format
800 x 480 Pixels | Wide Video Graphics Array (WVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Standard
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Capacitive
Specifications View
12:00
Specifications Voltage Supply
3.3 V
