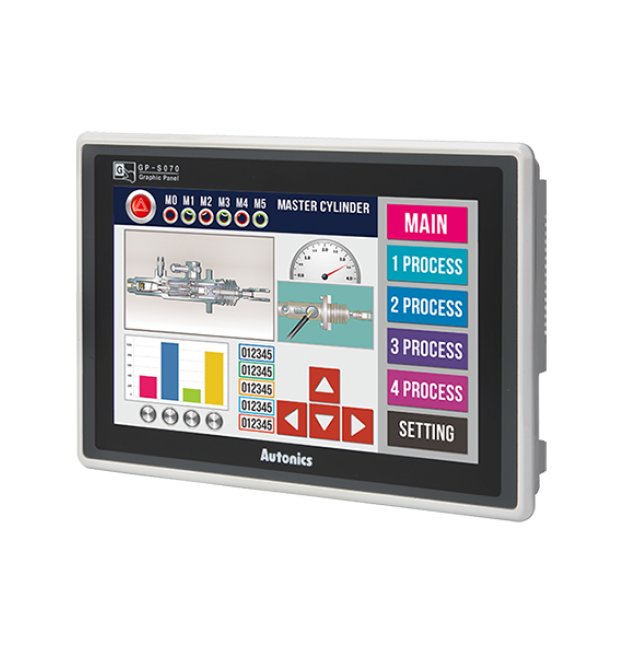

7 Inch Display HMI Panel, 12-24V DC, Autonics USA
7 Inch Display HMI Panel, 12-24V DC, Autonics USA
SKU:PRO-01d3ee
Explore precision control with the 7-inch HMI panel from Autonics USA. Real-time clock, advanced graphics, and robust interfaces.
Regular price
$618.95
Regular price
Sale price
$618.95
Unit price
per
Initiate Order
7 Inch Display HMI Panel, 12-24V DC, Autonics USA
$618.95
Quantity: 1
Claim Your Seller Account
7 Inch Display HMI Panel, 12-24V DC, Autonics USA
$618.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance human-machine interaction with the 7-inch TFT LCD color display, featuring a 16MB graphic drawing memory, pressure-sensitive touch method, and IP65F protection. This HMI panel from Autonics USA offers a wide temperature range, Real-Time Clock, and various interface options for seamless integration and efficient control performance. With European Conformity and Korean Certification, this panel ensures reliability and compliance with industry standards.
Product Specifications
Accessories Accessories
Fixing Bracket: 4, Battery (Included)
Display Specifications Display Area
152.4 x 91.44 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 480 px
Display Specifications Display Type
7 Inch Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Vector font6x8, 8x8 ASCII character, high definition numbers8x16 ASCII characters, 16x16 character by each country (1 to 8 times bigger for width, 0.5 to 5 times bigger for height)
Graphic Drawing Performance Graphic Touch Switch
Analog Touch
Graphic Drawing Performance Number Of User Screen
500 Pages
Human Machine Interface Hmi Connection Type
Terminal Block Connector
Human Machine Interface Hmi Item
Logic Panel
Human Machine Interface Hmi Monitor Size
7 in
Human Machine Interface Hmi Serial Interface
RS232C | RS422 (1 Each)
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Weight
540 g
Specifications Average Control Performance Processing Time
2 ms/steps
Specifications Control Performance Application Command
233
Specifications Control Performance Basic Command
28
Specifications Control Performance Program Capacity
8K Steps
Specifications Dedicated Software
GP Editor (Drawing Program) | SmartStudio (Logic Program)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Display Length
194 mm
Specifications Display Width
134 mm
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
1 EA
Specifications Graphic Drawing Memory
16 MB
Specifications Input Output Connector Type
Terminal block
Specifications List Price
618.95 USD
Specifications Negative Positive Negative Npn Input Configuratio
16 Point
Specifications Negative Positive Negative Npn Output Configurati
16 Point
Specifications Protection Structure
Ingress Protection (IP) 65F (Front Panel)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
1 EA
Specifications Rs422 Interface
1 EA
Specifications Touch Method
Pressure Sensitive Type
Specifications Type
Human-Machine Interface (HMI)
