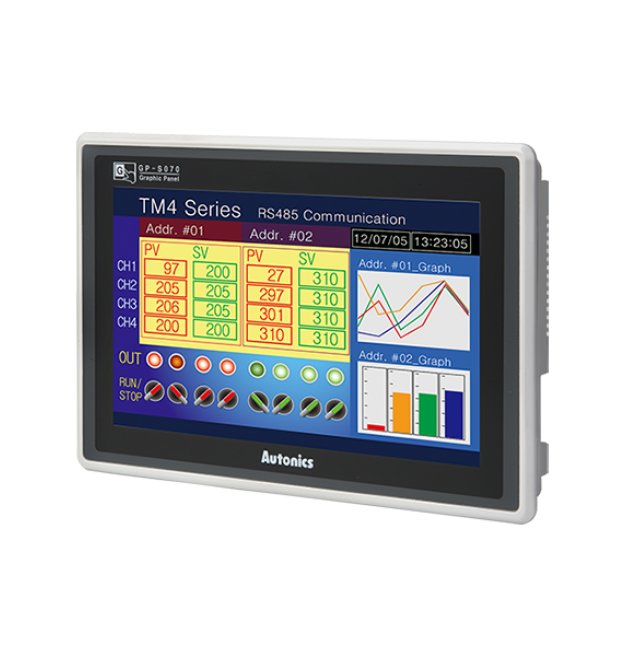

7 Inch TFT Color LCD HMI Display Panel, 152.4 x 91.44mm, 12-24V DC
7 Inch TFT Color LCD HMI Display Panel, 152.4 x 91.44mm, 12-24V DC
SKU:PRO-a717d6
Enhance control systems with Autonics USA 7 Inch TFT Color LCD HMI Display Panel for seamless operation and real-time performance.
Regular price
$552.95
Regular price
Sale price
$552.95
Unit price
per
Initiate Order
7 Inch TFT Color LCD HMI Display Panel, 152.4 x 91.44mm, 12-24V DC
$552.95
Quantity: 1
Claim Your Seller Account
7 Inch TFT Color LCD HMI Display Panel, 152.4 x 91.44mm, 12-24V DC
$552.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Empower your control systems with the Autonics USA HMI Display Panel, featuring a 7-inch TFT color LCD with a 152.4 x 91.44mm display area. With 16MB graphic drawing memory, pressure-sensitive touch method, and RS232C, Ethernet, USB interfaces, this HMI ensures seamless operation. It complies with IP65F protection, European Conformity, Korean Certification, and offers Real-Time Clock functionality for enhanced performance. Operating in 0-50°C ambient temperature, this HMI is a reliable choice for diverse applications.
Product Specifications
Accessories Accessories
Fixing Bracket: 4, Battery (Included)
Display Specifications Display Area
152.4 x 91.44 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 480 px
Display Specifications Display Type
7 Inch Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Vector font6x8, 8x8 ASCII character, high definition numbers8x16 ASCII characters, 16x16 character by each country (1 to 8 times bigger for width, 0.5 to 5 times bigger for height)
Graphic Drawing Performance Graphic Touch Switch
Analog Touch
Graphic Drawing Performance Number Of User Screen
500 Pages
Human Machine Interface Hmi Item
Graphic Panel
Human Machine Interface Hmi Monitor Size
7 in
Human Machine Interface Hmi Serial Interface
RS232C (2)
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Weight
520 g
Specifications Dedicated Software
GP Editor (Drawing Program)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Display Length
194 mm
Specifications Display Width
134 mm
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
1 EA
Specifications Graphic Drawing Memory
16 MB
Specifications List Price
552.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65F (Front Panel)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
2 EA
Specifications Touch Method
Pressure Sensitive Type
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
Specifications Universal Serial Bus Usb Host Interface
1 EA
Specifications Weight
2 lb
