7-Pole Light Blue Female Connector - 20A, Outdoor Rated

Name: 7-Pole Light Blue Female Connector - 20A, Outdoor Rated
Brand: Wieland Electric Inc.
SKU: CIR-da5b9f
Price: 24.99 USD
Availability: OutOfStock

SKU:CIR-da5b9f

High-quality 7-pole light blue female connector with outdoor rating. Suitable for 20A current, IP69 & Type 4X/6P protection.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

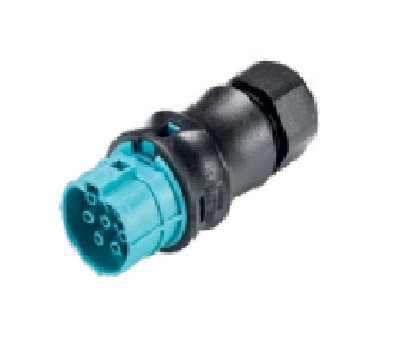

The 7-Pole Light Blue Female Connector is a high-quality pluggable electrical connector suitable for outdoor use. With a straight angle and screw connection, this connector accommodates cables ranging from 6mm to 10mm in diameter. It is rated for voltages up to 600V and currents of 3 x 20A + 4 x 5A (IEC) and 3 x 16A + 4 x 2A (cURus). Designed with IP69 and Type 4X/6P protection, it offers optional water seals for added safety. Compliant with industry standards, this connector provides reliable and secure electrical connections for various applications.

Product Specifications

Note Note

Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change

Specifications Angle Of Plug

Straight

Specifications Color Of Codingcontact Carrier

Light Blue

Specifications Connection Type

Screw Connection

Specifications Number Of Poles

Specifications Type

Female

Technical Data Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)

Technical Data Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X/6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

10 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

6 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Wire Size According To Canadian Ul Listed United

20 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
