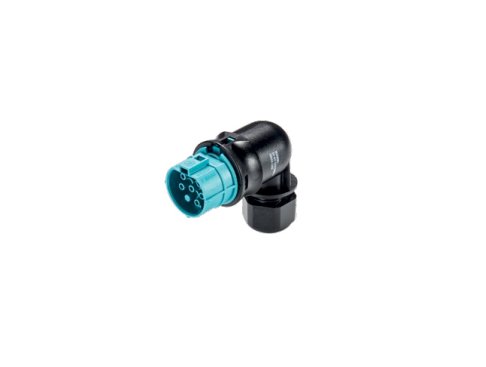

7 Poles Black Female Connector - Wieland 20A

Name: 7 Poles Black Female Connector - Wieland 20A
Brand: Wieland Electric Inc.
SKU: CIR-41180f
Price: 24.99 USD
Availability: OutOfStock

SKU:CIR-41180f

Durable 7 Poles Black Female Connector with IP69 protection, suitable for outdoor use. Compatible with international & N.A. standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 7 Poles Black Female Connector by Wieland features a durable design with a screw connection, suitable for outdoor use with an IP69 rating. With a range of compatible wire sizes and compatibility with international and North American standards, it offers reliable power connections for various applications. Optional water seals provide added protection when unmated, ensuring longevity and safety in demanding environments.

Product Specifications

Note Note

Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change

Specifications Angle Of Plug

Angled 90Âº

Specifications Color Of Codingcontact Carrier

Black

Specifications Connection Type

Screw Connection

Specifications Number Of Poles

Specifications Type

Female

Technical Data Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)

Technical Data Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X/6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

14 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

10 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Wire Size According To Canadian Ul Listed United

20 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
