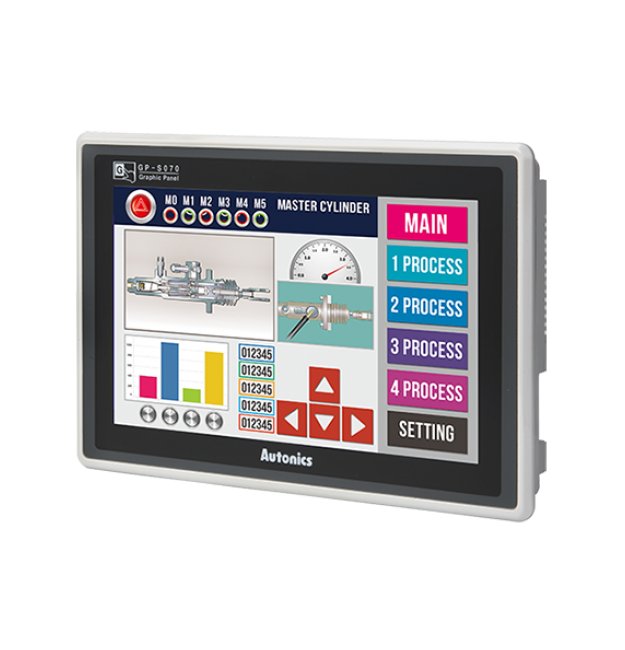

Experience unparalleled control with the Autonics USA 7" TFT Color Human-Machine Interface (HMI). Featuring a 16 MB graphic drawing memory, 800x480 px resolution, and pressure-sensitive touch method, this HMI offers intuitive operation. With extensive connectivity options including RS232C, Ethernet, and USB interfaces, and certifications like CE and KC, this HMI ensures reliable performance in industrial environments. The Real-Time Clock, 500 user screen capability, and IP65F protection structure further enhance its functionality.
Product Specifications
Accessories Accessories
Fixing Bracket: 4, Battery (Included)
Display Specifications Display Area
152.4 x 91.44 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 480 px
Display Specifications Display Type
7 Inch Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Vector font6x8, 8x8 ASCII character, high definition numbers8x16 ASCII characters, 16x16 character by each country (1 to 8 times bigger for width, 0.5 to 5 times bigger for height)
Graphic Drawing Performance Graphic Touch Switch
Analog Touch
Graphic Drawing Performance Number Of User Screen
500 Pages
Human Machine Interface Hmi Connection Type
Ribbon Cable Connector
Human Machine Interface Hmi Item
Logic Panel
Human Machine Interface Hmi Monitor Size
7 in
Human Machine Interface Hmi Serial Interface
RS232C (2)
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Weight
540 g
Specifications Average Control Performance Processing Time
2 ms/steps
Specifications Control Performance Application Command
233
Specifications Control Performance Basic Command
28
Specifications Control Performance Program Capacity
8K Steps
Specifications Dedicated Software
GP Editor (Drawing Program) | SmartStudio (Logic Program)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Display Length
194 mm
Specifications Display Width
134 mm
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
1 EA
Specifications Graphic Drawing Memory
16 MB
Specifications Input Output Connector Type
Ribbon Cable
Specifications List Price
618.95 USD
Specifications Negative Positive Negative Npn Input Configuratio
16 Point
Specifications Negative Positive Negative Npn Output Configurati
16 Point
Specifications Protection Structure
Ingress Protection (IP) 65F (Front Panel)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
2 EA
Specifications Touch Method
Pressure Sensitive Type
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
