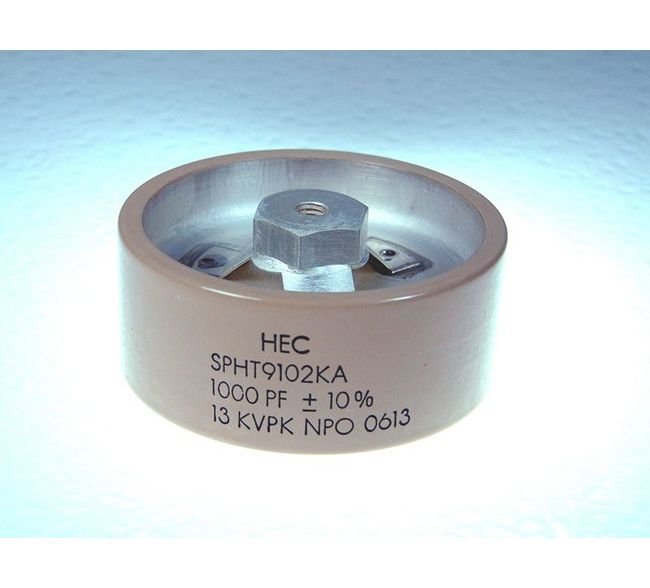

70 mm Diameter Power Disk Ceramic Capacitors - SPHT Series

Name: 70 mm Diameter Power Disk Ceramic Capacitors - SPHT Series
Brand: High Energy Corp.
SKU: CER-c9095b
Price: 49.99 USD
Availability: OutOfStock

SKU:CER-c9095b

Enhance power systems with SPHT 70 mm Diameter Power Disk Ceramic Capacitors - Up to 14 kVDC, high reliability, ideal for institutional buyers.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your power systems with our SPHT 70 mm Diameter Power Disk Ceramic Capacitors. These capacitors offer a working voltage of up to 14 kVDC, a power rating of up to 20 kV·A, and a capacitance ranging from 50 to 7000 pF. With their NP0 dielectric Class I TC's, they ensure high reliability and stability in various applications. The 70 mm diameter and M6 thread make them easy to install and integrate seamlessly into your projects. Compliant with Federal/DoD procurement standards, GSA requirements, FAR compliance factors, DLA standards, and industry-specific certifications, these capacitors meet the highest quality and performance expectations of institutional buyers.

Product Specifications

Specifications Cap

100 pF

Specifications Diameter

70 mm

Specifications Dielectric Tc

NP0

Specifications Fh

20.4 MHz

Specifications Fl

0.325 MHz

Specifications Imax Rms

16 A

Specifications Smax

20 kV·A

Specifications Thread

Specifications Vmax Dc

14 kV
