70 mm Power Disk Ceramic Capacitors
70 mm Power Disk Ceramic Capacitors
SKU:CER-a7cb74
High-performance 70 mm Ceramic Capacitors with up to 30 kVDC working voltage, ideal for industrial and institutional usage.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
70 mm Power Disk Ceramic Capacitors
$59.99
Quantity: 1
Claim Your Seller Account
70 mm Power Disk Ceramic Capacitors
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

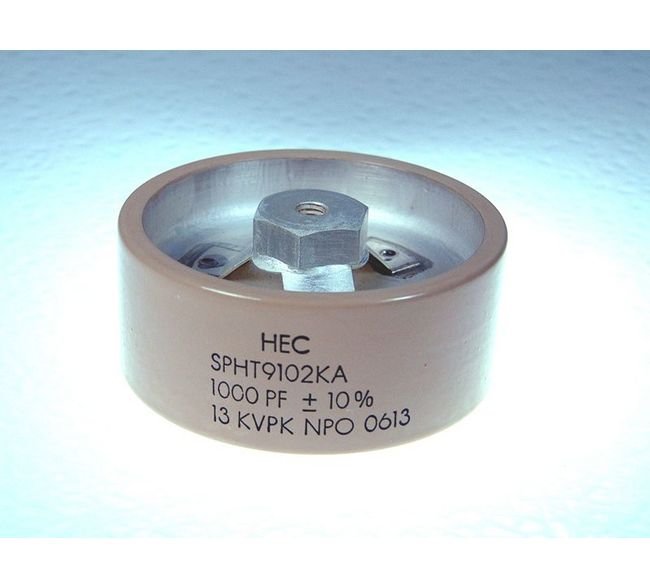

The 70 mm Diameter Power Disk Ceramic Capacitors from the SPHT series combine high performance with reliability. With a working voltage of up to 30 kVDC and a power rating of up to 90 kVA, these capacitors offer exceptional capacitance ranging from 50 to 1000 pF. Available in diameters of 70, 100, 140, and 165 mm, these capacitors come with a choice of four Class I TC's for precise control. Designed for long-lasting performance and high efficiency, these capacitors are ideal for demanding industrial and institutional applications.
Product Specifications
Specifications Cap
50 to 1000 pF
Specifications Capacitance Tolerance
±5% | ±10% | ±20%
Specifications Diameter

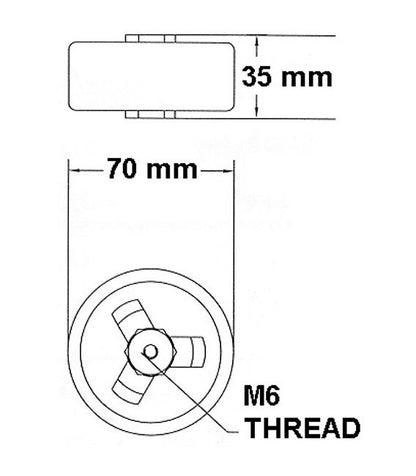

70 mm
Specifications Smax
20 kV·A
