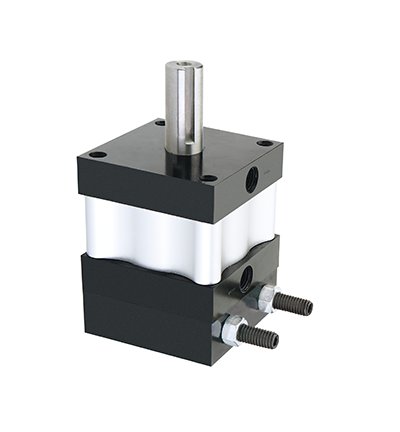

700 in-lb Turn-Act Rotary Vane Actuator - 45° Rotation Angle
700 in-lb Turn-Act Rotary Vane Actuator - 45° Rotation Angle
SKU:ROT-08d049
Enhance control with the 700 in-lb Rotary Vane Actuator - 45° Rotation Angle. Ensures precision and durability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
700 in-lb Turn-Act Rotary Vane Actuator - 45° Rotation Angle
$799.99
Quantity: 1
Claim Your Seller Account
700 in-lb Turn-Act Rotary Vane Actuator - 45° Rotation Angle
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 700 in-lb Turn-Act Rotary Vane Actuator with a 45° rotation angle offers precise repeatability, continuous full torque, and zero backlash. Featuring patented urethane seals for long cycle life, this actuator ensures optimal performance and durability. Optional position feedback and stop cushioning enhance its versatility, making it an ideal choice for applications requiring reliable rotational output.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
7.42 in
Specifications Maximum Torque
700 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
45 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
