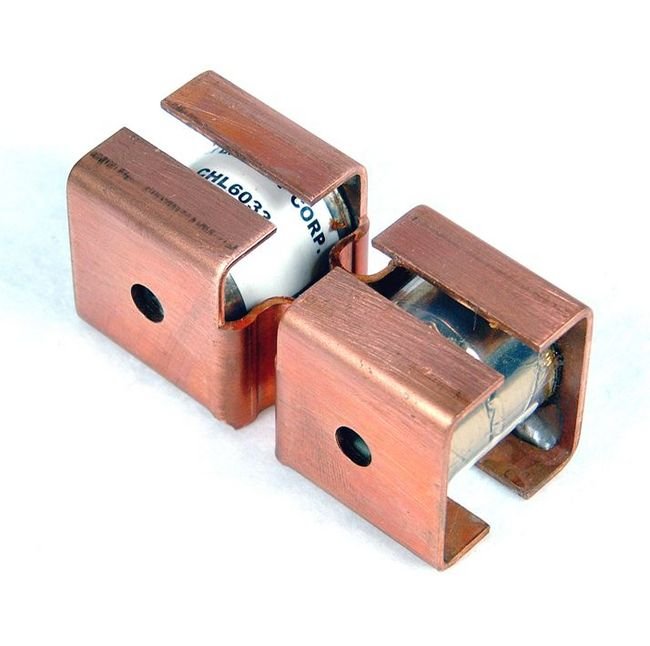

The CHL Series Metallized Film Capacitors offer exceptional performance with up to 700 VRMS Working Voltage and 160 kVA Max Power. Designed for reliability, these capacitors feature a Capacitance Range of 0.1 to 2.5 µF with a Capacitance Tolerance of ±10%. With dimensions of 2 11/16 x 1 1/4 x 1 3/16 in and weighing 0.5 kg, they are ideal for various applications. Operating at temperatures up to +90 ºC and conduction-cooled by bus bars, these capacitors ensure efficient performance and durability. Compliant with industry standards and suitable for institutional procurement needs, the CHL Series capacitors are a dependable choice for demanding projects.
Product Specifications
Specifications Cap
0.17 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

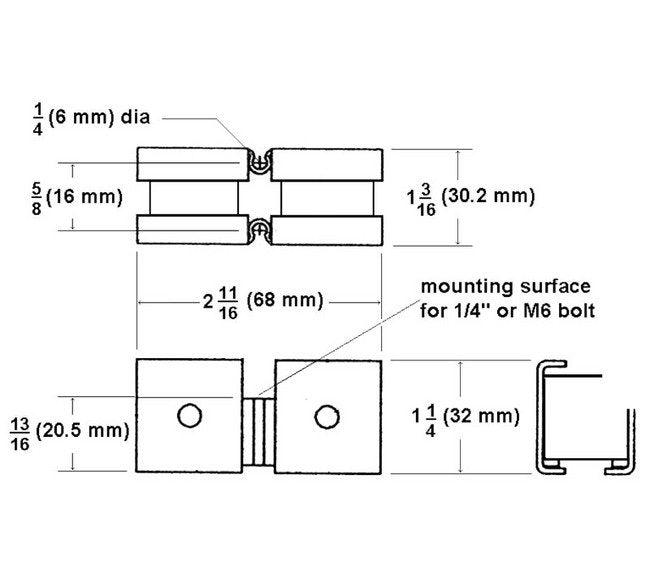

Specifications Dimensions
2 11/16 x 1 1/4 x 1 3/16 in | 68 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
365 kHz
Specifications Fl
305 kHz
Specifications Fmax
1000 kHz
Specifications Imax Rms
250 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.5 kg | 1.1 lb
