700 VRMS Metallized Film Capacitors - 0.33 µF
700 VRMS Metallized Film Capacitors - 0.33 µF
SKU:MET-302b77
Empower your systems with 700 VRMS Metallized Film Capacitors - ideal for institutions!
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
700 VRMS Metallized Film Capacitors - 0.33 µF
$49.99
Quantity: 1
Claim Your Seller Account
700 VRMS Metallized Film Capacitors - 0.33 µF
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

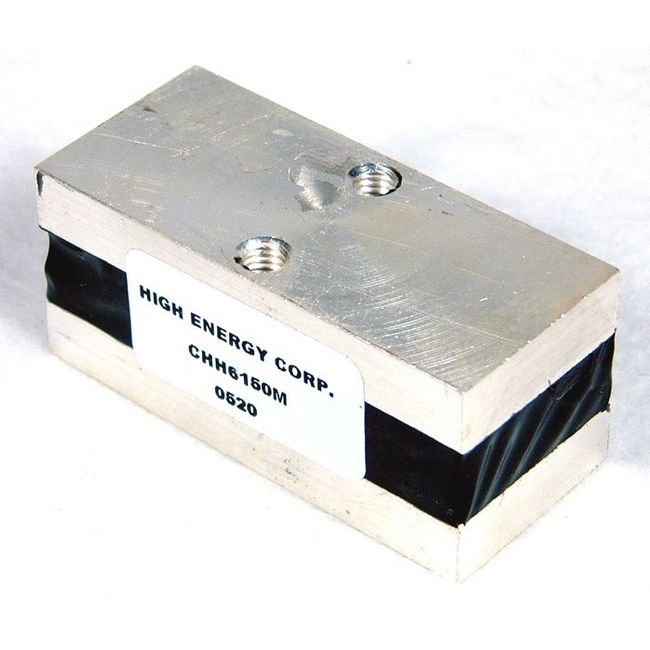

Enhance your electronic systems with the CHH Series Metallized Film Capacitors featuring a 700 VRMS Working Voltage and 160 kVA Max Power. With a capacitance range of 0.1 to 2.5 µF and operating temperature up to +90 ºC, these capacitors ensure reliable performance in diverse applications. Conduction-cooled by bus bars, these capacitors are stackable in series and parallel configurations, making them ideal for institutional and government procurement needs.
Product Specifications
Specifications Cap
0.33 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

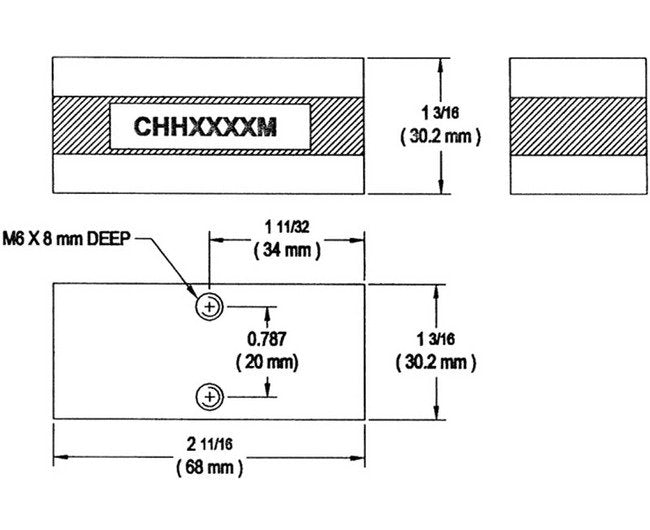

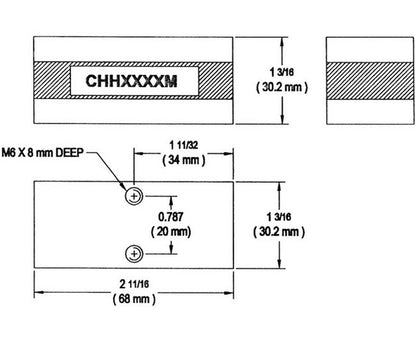

Specifications Dimensions
2 11/16 x 1 3/16 x 1 3/16 in | 68 x 30.2 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
228 kHz
Specifications Fl
157 kHz
Specifications Fmax
800 kHz
Specifications Imax Rms
275 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.5 kg | 1.1 lb
