7000 Series Heavy-Duty Cabinet
7000 Series Heavy-Duty Cabinet
SKU:VEN-9e7ede
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
7000 Series Heavy-Duty Cabinet
$49.99
Quantity: 1
Claim Your Seller Account
7000 Series Heavy-Duty Cabinet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

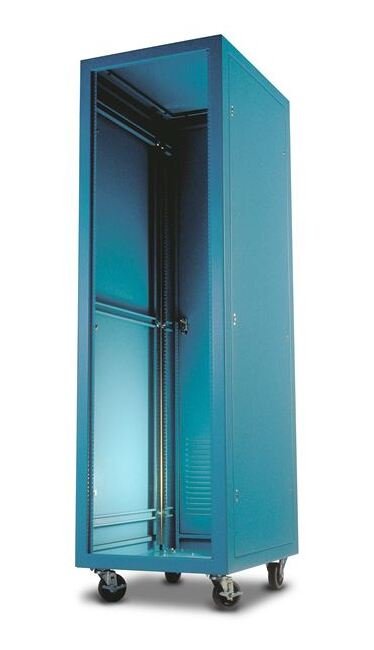

Heavy-duty cabinet with optional casters shown.These heavy duty cabinets are ideal for military and government contracted applications where security is crucial, but ease of accessibility is still required.
Product Specifications
Notes

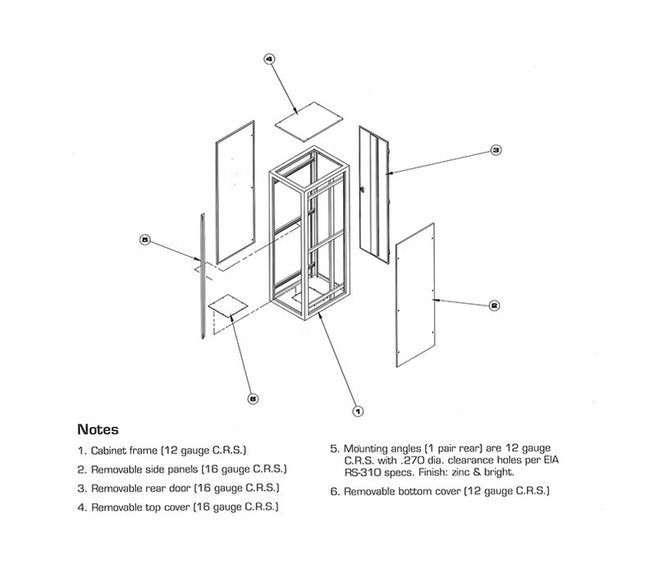

Cabinet Frame (12 gauge C.R.S.)Removable Side Panels (16 gauge C.R.S.)Removable Rear Door (16 gauge C.R.S.)Removable Top Cover (16 gauge C.R.S.)Mounting angles (1 pair rear) are 12 gauge C.R.S. with 0.270 diameter clearance holes per EIA RS-310 specs. Finish: zinc & bright.Removable bottom cover (12 gauge C.R.S.)

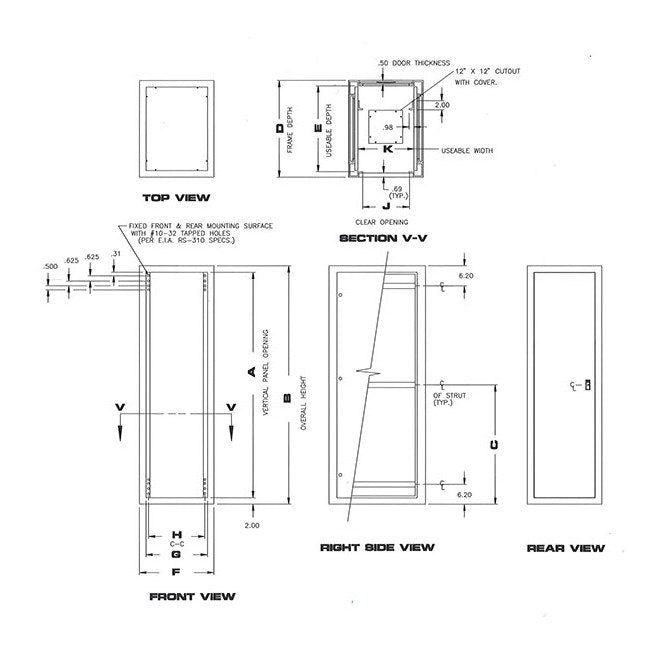

Specifications Clear Opening J
28.94 in
Specifications Color Charts
Fed Standard 595 Color Chart | RAL Color Chart
Specifications Frame Depth D
36.00 in
Specifications Frame Width F
34.13 in
Specifications Gdi Reference
Contact factory for information
Specifications Hole C C H
29.31 in
Specifications Number Of Bays
2
Specifications Options
Busbar | Caster base | Face mounted front door | Heavy-duty caster base | Heavy-duty casters | Heavy-duty lifting eyes | Key lock | Louvered rear door bottom | Louvered rear door top | Louvered rear door top and bottom | Louvered side panel bottom | Louvered side panel top | Louvered side panel top and bottom | Louvered top pan | Louvers | Medium duty caster base | Medium duty casters | Mounting "Z" rail | Mounting channel | Offset mounting channel | Power strip | Rear horizontal space divider | Standard duty lifting eyes | Standard mounting angle | Stationary base
Specifications Overall Height B
65.38 in
Specifications Panel Height A
31.63 in (18U)
Specifications Panel Width G
30.13 in
Specifications Series
VR7000
Specifications Spec Sheets
Brochure for 7000 Series Heavy-Duty Cabinet
Specifications Strut Location C
32.69 in
Specifications Useable Depth E
34.41 in
Specifications Useable Width K
30.91 in
