700G Series Wafer Butterfly Valves
700G Series Wafer Butterfly Valves
SKU:VAL-bc2c72
Enhanced 700G Series Butterfly Valves with superior performance and durability, compliant with ISO standards.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
700G Series Wafer Butterfly Valves
$599.99
Quantity: 1
Claim Your Seller Account
700G Series Wafer Butterfly Valves
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

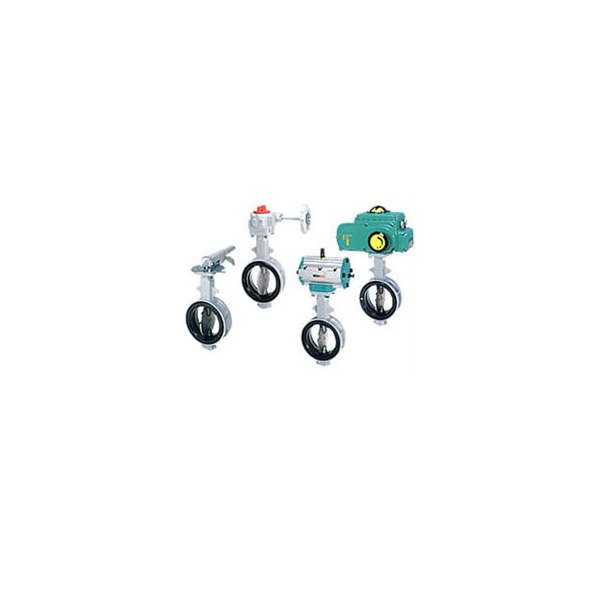

The 700G Series Wafer Butterfly Valves are a superior pressure-proof solution designed to meet a wide range of needs. With a variety of body and disc materials, including high-grade stainless steel and coated carbon steel, these valves offer excellent performance and durability. Patented cosine-curve seat rings reduce operating torque, ensuring smooth operation and extended valve life. Self-aligning stem seals and a choice of disc materials cater to specific requirements. Compliant with ISO standards and featuring long bonnets for insulation, these valves are ideal for diverse applications.
Product Specifications

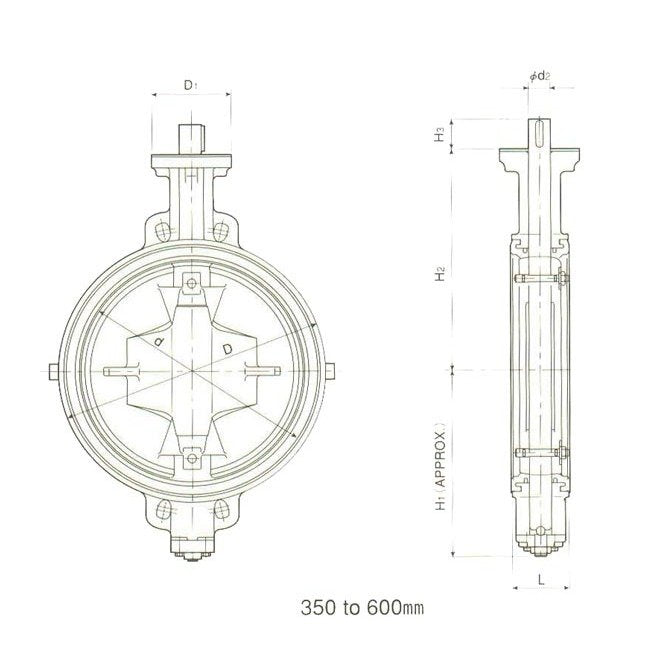

Dimensional Information A Min Internal Diameters Of Piping
569 mm
Dimensional Information D
682 mm
Dimensional Information D1
165 mm
Dimensional Information D2
55 mm
Dimensional Information H1
458 mm
Dimensional Information H2
528 mm
Dimensional Information H3
79 mm
Dimensional Information L
154 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
70 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U1 1/4
Flange Information Ansi 125lb150lb Hexagon Bolts Length
95 mm
Flange Information Ansi 125lb150lb Long Bolts Length
340 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
16
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 4504 NP10 excluding JIS 10K | DIN PN10 | JIS 5K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
60 mm
Flange Information Jis 10k Effective Screw Long Bolts Length
60 mm
Flange Information Jis 10k Hexagon Boltsnuts
M30
Flange Information Jis 10k Hexagon Boltsnuts Length
75 mm
Flange Information Jis 10k Long Bolts And Nuts
M30
Flange Information Jis 10k Long Bolts Length
290 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
8
Flange Information Jis 10k Number Of Long Bolts
20
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
54 mm
Flange Information Jis 5k Effective Screw Long Bolts Length
45 mm
Flange Information Jis 5k Hexagon Boltsnuts
M24
Flange Information Jis 5k Hexagon Boltsnuts Length
70 mm
Flange Information Jis 5k Long Bolts And Nuts
M24
Flange Information Jis 5k Long Bolts Length
275 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
8
Flange Information Jis 5k Number Of Long Bolts
16
Specifications Actuators
Electric Motor | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Disc Material
316 Stainless Steel JIS SCS14 | Aluminum Bronze JIS CAC702 | Carbon Steel JIS SF490A with Nylon Coating
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Seat Material
EPDM | NBR
Specifications Size
600 - 24"
Specifications Stem Material
SUS420J2/SUS392J1
