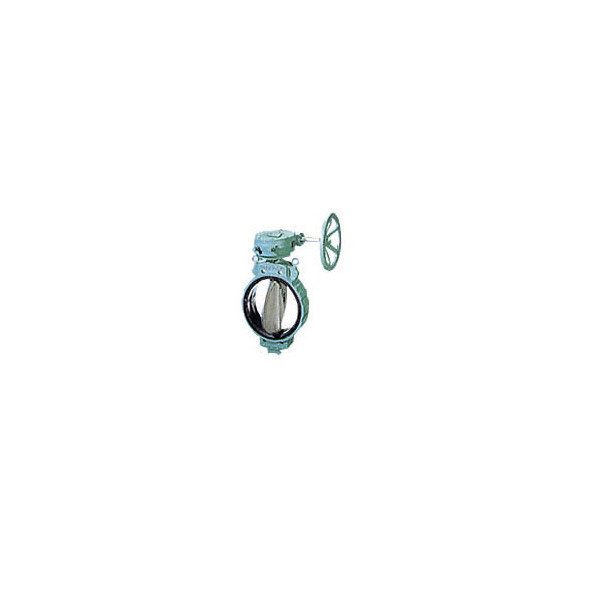

The 700S Semi Lugged Wafer Butterfly Valves from the Series 700S are expertly designed for reliable performance in industrial applications, with a track record of over 30 years of proven service. These valves offer immediate replacements for FIG.700E and 700K models, featuring the same durable construction and design with enhanced features. With face to face dimensions identical to 700E/K, interchangeable seat and disc assembly designs, and compliance with stringent industry standards, these valves ensure trouble-free operation and minimal maintenance requirements.
Product Specifications

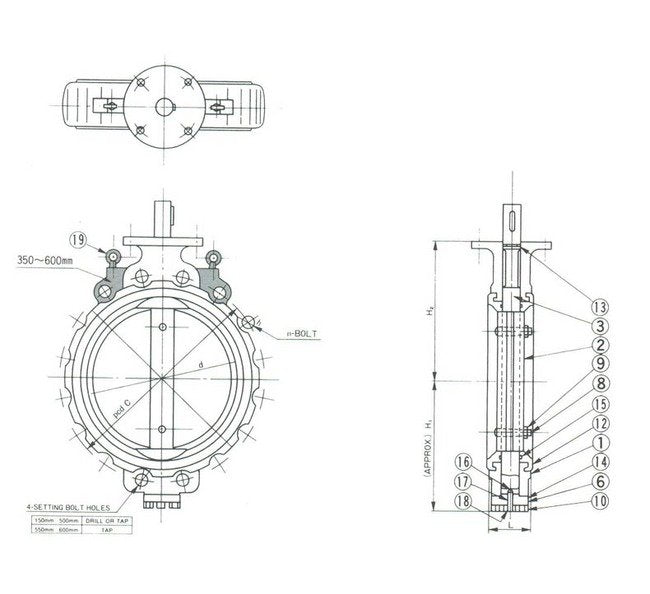

Dimensional Information A Min Internal Diameters Of Piping
463 mm
Dimensional Information C Ansi 125lb150lb
25 in
Dimensional Information C Bs 4504 Np10
620 mm
Dimensional Information C Jis 10k
620 mm
Dimensional Information C Jis 5k
605 mm
Dimensional Information D
596 mm
Dimensional Information H1
381 mm
Dimensional Information H2
420 mm
Dimensional Information L
140 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
63 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
70 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 1 1/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
90 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 1 1/8
Flange Information Ansi 125lb150lb Long Bolts Length
300 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
20
Flange Information Ansi 125lb150lb Number Of Threaded Bolt Holes
16
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M24
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
20
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
50 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
54 mm
Flange Information Jis 10k Hexagon Bolts
M24
Flange Information Jis 10k Hexagon Boltsnuts
M24
Flange Information Jis 10k Hexagon Boltsnuts Length
265 mm
Flange Information Jis 10k Hexagon Bolts Length
70 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
20
Flange Information Jis 10k Number Of Threaded Bolt Holes
16
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
45 mm
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
50 mm
Flange Information Jis 5k Hexagon Bolts
M22
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Seat Material
EPDM | NBR
Specifications Size
500 - 20"
Specifications Stem Material
403 Stainless Steel (SUS403)
