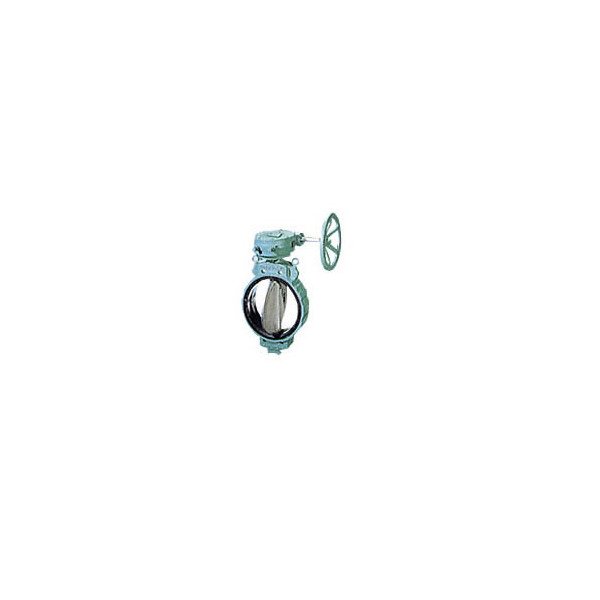

The 700S Semi Lugged Wafer Butterfly Valves from the Series 700S are engineered for durability and reliability, with a track record of over 30 years in service. Ideal for marine and industrial applications, these valves offer seamless maintenance and immediate replacements for previous models. Featuring interchangeable seat and disc assembly designs and a triple sealing system for leak prevention, these valves ensure unmatched performance. With materials like Cast Iron body, Stainless Steel disc, and EPDM/NBR seat, they guarantee robust construction and operation within a wide temperature range.
Product Specifications

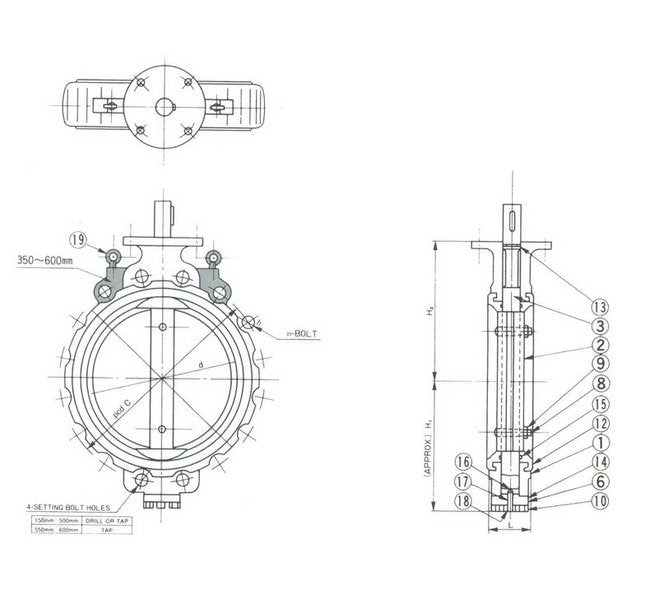

Dimensional Information A Min Internal Diameters Of Piping
421 mm
Dimensional Information C Ansi 125lb150lb
22 3/4 in
Dimensional Information C Bs 4504 Np10
565 mm
Dimensional Information C Jis 10k
565 mm
Dimensional Information C Jis 5k
555 mm
Dimensional Information D
544 mm
Dimensional Information H1
355 mm
Dimensional Information H2
390 mm
Dimensional Information L
120 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
63 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
65 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 1 1/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
85 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 1 1/8
Flange Information Ansi 125lb150lb Long Bolts Length
275 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
16
Flange Information Ansi 125lb150lb Number Of Threaded Bolt Holes
12
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M24
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
20
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
50 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
54 mm
Flange Information Jis 10k Hexagon Bolts
M24
Flange Information Jis 10k Hexagon Boltsnuts
M24
Flange Information Jis 10k Hexagon Boltsnuts Length
245 mm
Flange Information Jis 10k Hexagon Bolts Length
70 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
20
Flange Information Jis 10k Number Of Threaded Bolt Holes
16
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
45 mm
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
50 mm
Flange Information Jis 5k Hexagon Bolts
M22
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Seat Material
EPDM | NBR
Specifications Size
450 - 18"
Specifications Stem Material
403 Stainless Steel (SUS403)
