700S Semi Lugged Wafer Butterfly Valves - Series 700S
700S Semi Lugged Wafer Butterfly Valves - Series 700S
SKU:VAL-9d09dc
Reliable 700S Semi Lugged Butterfly Valves for industrial applications with triple seals for leak-free performance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
700S Semi Lugged Wafer Butterfly Valves - Series 700S
$899.99
Quantity: 1
Claim Your Seller Account
700S Semi Lugged Wafer Butterfly Valves - Series 700S
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

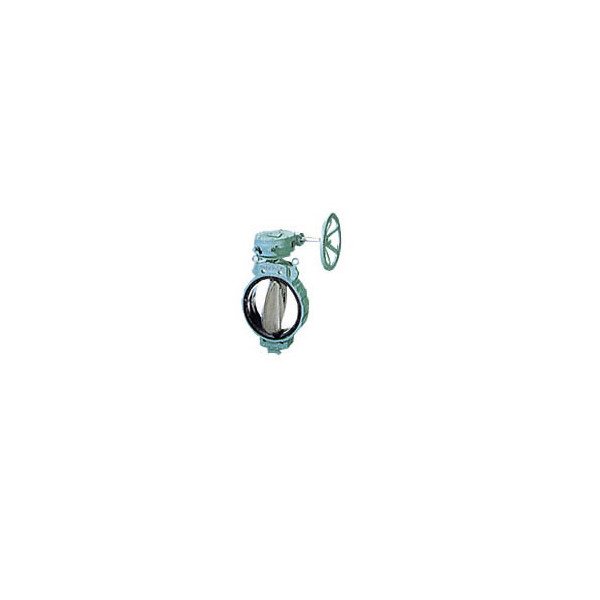

The 700S Semi Lugged Wafer Butterfly Valves are meticulously engineered for superior performance in diverse industrial applications. Designed for reliability, these valves feature a raised seat ring, a rounded dove-tail design for easy seat replacement, and triple seals for leak-free operation. With interchangeable seat and disc assembly designs, these valves provide immediate replacements for FIG.700E and 700K models. Constructed with cutting-edge materials like EPDM, NBR, and stainless steel, these valves offer a working temperature range from -20°C to 120°C. Multiple actuator options and a sturdy cast iron body ensure seamless operation and longevity.
Product Specifications

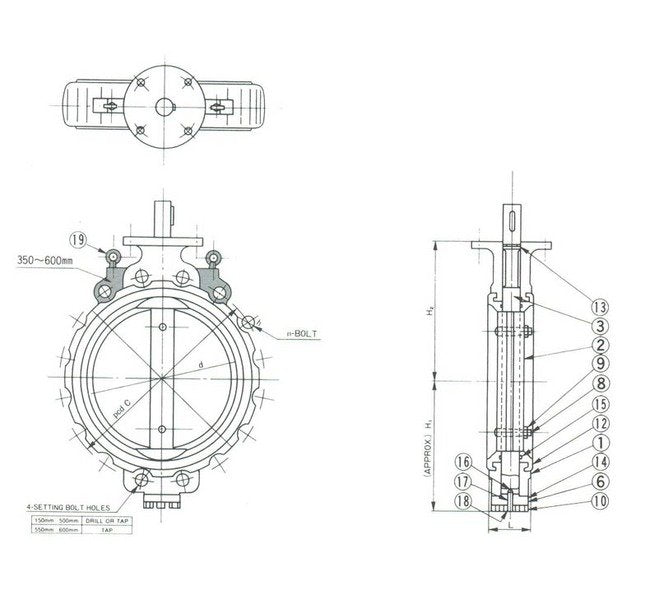

Dimensional Information A Min Internal Diameters Of Piping
187 mm
Dimensional Information C Ansi 125lb150lb
11.75 in
Dimensional Information C Bs 4504 Np10
295 mm
Dimensional Information C Jis 10k
290 mm
Dimensional Information C Jis 5k
280 mm
Dimensional Information D
272 mm
Dimensional Information H1
181 mm
Dimensional Information H2
210 mm
Dimensional Information L
65 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
44 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
50 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 3/4
Flange Information Ansi 125lb150lb Hexagon Bolts Length
55 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 3/4
Flange Information Ansi 125lb150lb Long Bolts Length
175 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
8
Flange Information Ansi 125lb150lb Number Of Threaded Bolt Holes
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M20
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
8
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
50 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
46 mm
Flange Information Jis 10k Hexagon Bolts
M20
Flange Information Jis 10k Hexagon Boltsnuts
M20
Flange Information Jis 10k Hexagon Boltsnuts Length
135 mm
Flange Information Jis 10k Hexagon Bolts Length
50 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
12
Flange Information Jis 10k Number Of Threaded Bolt Holes
8
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
50 mm
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
46 mm
Flange Information Jis 5k Hexagon Bolts
M20
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Seat Material
EPDM | NBR
Specifications Size
200 - 8"
Specifications Stem Material
403 Stainless Steel (SUS403)
