700S Wafer Butterfly Valve
700S Wafer Butterfly Valve
SKU:VAL-4354f2
Reliable, low-maintenance 700S Wafer Butterfly Valve for marine and industrial use with interchangeable seat and disc assemblies, triple seal technology, and robust construction.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
700S Wafer Butterfly Valve
$599.99
Quantity: 1
Claim Your Seller Account
700S Wafer Butterfly Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

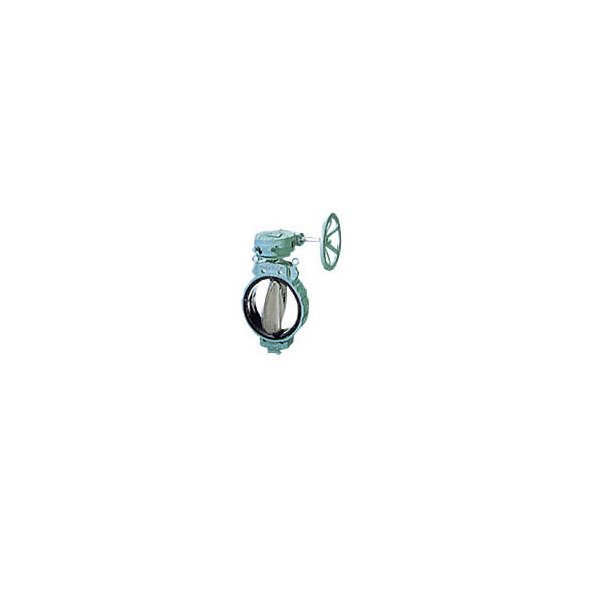

The 700S Wafer Butterfly Valve from the Series 700S is a reliable and low-maintenance solution designed for marine and industrial applications. With over 30 years of proven service, this valve is a direct replacement for models 700E and 700K. It features interchangeable seat and disc assembly designs, triple seal technology for non-leakage, and a rounded dove-tail design for easy seat ring replacement. This valve meets stringent quality standards and offers robust construction for long-term performance in challenging environments.
Product Specifications

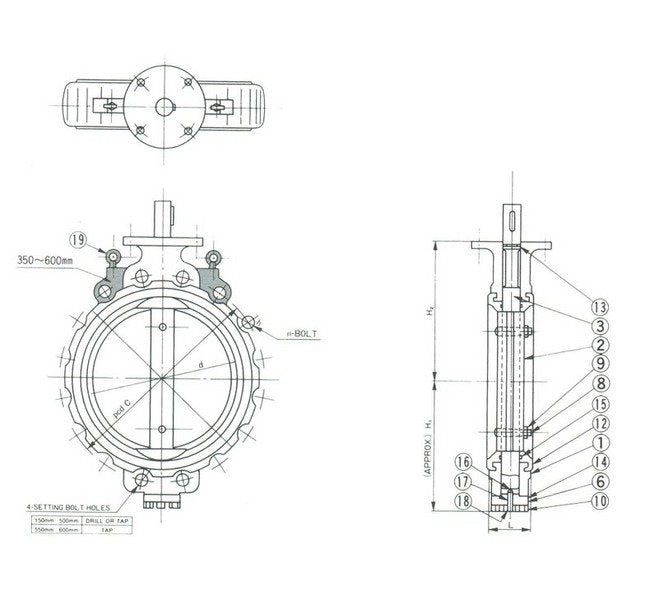

Dimensional Information A Min Internal Diameters Of Piping
566 mm
Dimensional Information C Ansi 125lb150lb
29 1/2 in
Dimensional Information C Bs 4504 Np10
725 mm
Dimensional Information C Jis 10k
730 mm
Dimensional Information C Jis 5k
715 mm
Dimensional Information D
710 mm
Dimensional Information H1
475 mm
Dimensional Information H2
490 mm
Dimensional Information L
160 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
70 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
80 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 1 1/4
Flange Information Ansi 125lb150lb Hexagon Bolts Length
100 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 1 1/4
Flange Information Ansi 125lb150lb Long Bolts Length
335 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
20
Flange Information Ansi 125lb150lb Number Of Threaded Bolt Holes
16
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M27
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
20
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
60 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
66 mm
Flange Information Jis 10k Hexagon Bolts
M30
Flange Information Jis 10k Hexagon Boltsnuts
M30
Flange Information Jis 10k Hexagon Boltsnuts Length
300 mm
Flange Information Jis 10k Hexagon Bolts Length
80 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
24
Flange Information Jis 10k Number Of Threaded Bolt Holes
20
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
50 mm
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
54 mm
Flange Information Jis 5k Hexagon Bolts
M24
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Seat Material
EPDM | NBR
Specifications Size
600 - 24"
Specifications Stem Material
403 Stainless Steel (SUS403)
