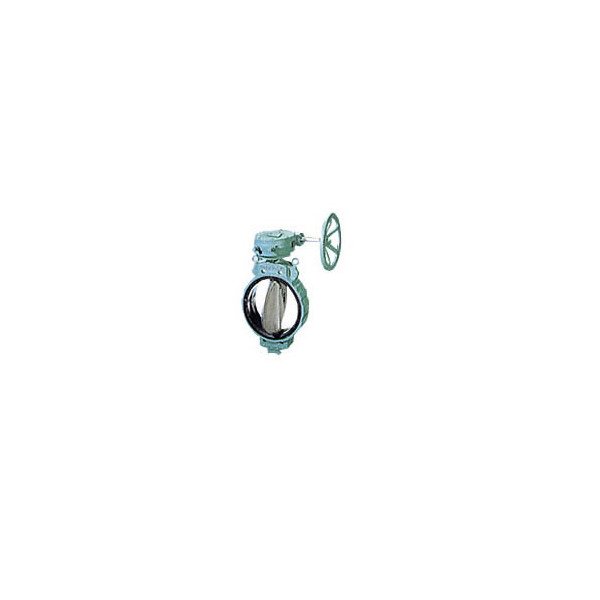

• 700S Wafer Butterfly Valve Set - Image 1
  • 700S Wafer Butterfly Valve Set - Image 2
1 2
World Wide Metric, Inc. →

700S Wafer Butterfly Valve Set

700S Wafer Butterfly Valve Set

VAL-9ffa9c

Reliable 700S Butterfly Valve for industrial and marine applications, offers triple sealing for non-leakage.

$399.99
$399.99
Sale

Initiate Order

700S Wafer Butterfly Valve Set

700S Wafer Butterfly Valve Set

$399.99

Quantity: 1

Claim Your Seller Account

700S Wafer Butterfly Valve Set

700S Wafer Butterfly Valve Set

$399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 700S Semi Lugged Wafer Butterfly Valves from the Series 700S are expertly designed for marine and various industrial applications, boasting over 30 years of proven trouble-free performance. These valves offer reliable construction, interchangeable seat and disc assembly designs, and immediate replacement compatibility with FIG.700E and 700K models. Featuring a triple sealing system, raised seat ring, and rounded dove-tail design, these valves ensure bubble-tight shutoff, easy maintenance, and non-leakage. With a body material of Cast Iron (FC250/A126 Class B) and options for EPDM or NBR seat materials, these valves meet stringent industry standards for durability and performance.

Product Specifications

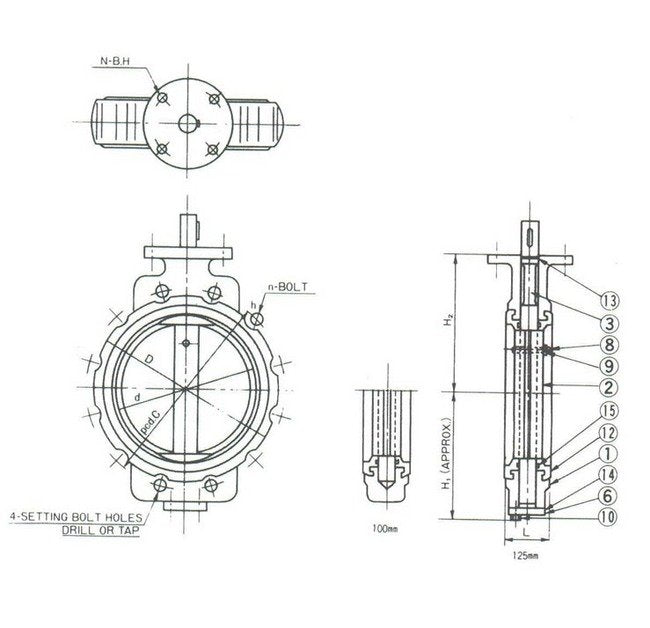

Dimensional Information A Min Internal Diameters Of Piping
91 mm
Dimensional Information C Ansi 125lb150lb
7.500 in
Dimensional Information C Bs 4504 Np10
180 mm
Dimensional Information C Jis 10k
175 mm
Dimensional Information C Jis 5k
165 mm
Dimensional Information D
158 mm
Dimensional Information H1
107 mm
Dimensional Information H2
150 mm
Dimensional Information L
50 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
38 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
40 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 5/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
45 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 5/8
Flange Information Ansi 125lb150lb Long Bolts Length
145 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
8
Flange Information Ansi 125lb150lb Number Of Threaded Bolt Holes
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M16
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
8
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
40 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
38 mm
Flange Information Jis 10k Hexagon Bolts
M16
Flange Information Jis 10k Hexagon Boltsnuts
M16
Flange Information Jis 10k Hexagon Boltsnuts Length
110 mm
Flange Information Jis 10k Hexagon Bolts Length
40 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
8
Flange Information Jis 10k Number Of Threaded Bolt Holes
4
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
40 mm
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
38 mm
Flange Information Jis 5k Hexagon Bolts
M16
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Seat Material
EPDM | NBR
Specifications Size
100 - 4"
Specifications Stem Material
403 Stainless Steel (SUS403)
