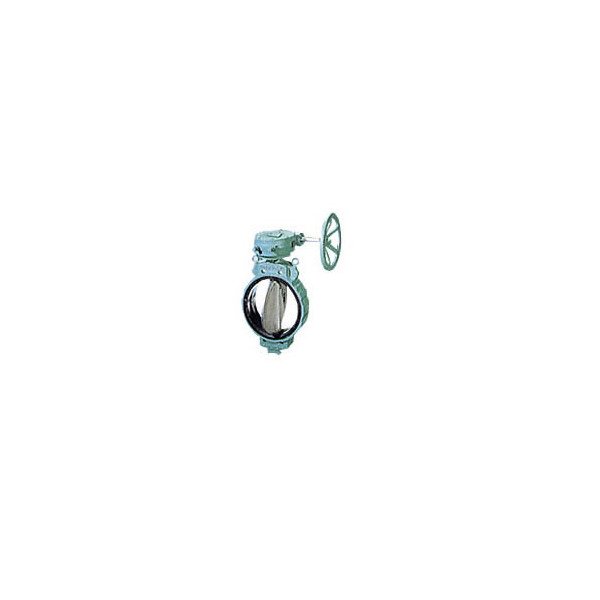

700S Wafer Butterfly Valves - Series 700S

700S Wafer Butterfly Valves - Series 700S

VAL-6e0bb9

Reliable and durable wafer butterfly valves for marine and industrial applications. Immediate replacements for FIG.700E and 700K models, offering trouble-free maintenance and interchangeable seat and disc assembly designs.

$195.00
$195.00
Sale

Initiate Order

700S Wafer Butterfly Valves - Series 700S

700S Wafer Butterfly Valves - Series 700S

$195.00

Quantity: 1

Claim Your Seller Account

700S Wafer Butterfly Valves - Series 700S

700S Wafer Butterfly Valves - Series 700S

$195.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 700S Wafer Butterfly Valves from Series 700S are designed for marine and industrial applications, offering over 30 years of reliable service. Featuring a trouble-free maintenance design, these valves are immediate replacements for FIG.700E and 700K models with the same construction and design features. With face-to-face dimensions identical to 700E/K models, these valves boast interchangeable seat and disc assembly designs, making them a versatile and durable choice for various settings.

Product Specifications

Dimensional Information A Min Internal Diameters Of Piping
37 mm
Dimensional Information C Ansi 125lb150lb
4.75 in
Dimensional Information C Bs 4504 Np10
125 mm
Dimensional Information C Jis 10k
120 mm
Dimensional Information C Jis 5k
105 mm
Dimensional Information D
90 mm
Dimensional Information H1
65 mm
Dimensional Information H2
105 mm
Dimensional Information L
45.0 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
35 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 5/8
Flange Information Ansi 125lb150lb Long Bolts Length
130 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M16
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
4
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
40 mm
Flange Information Jis 10k Hexagon Boltsnuts
M16
Flange Information Jis 10k Hexagon Boltsnuts Length
100 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
4
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
30 mm
Flange Information Jis 5k Hexagon Boltsnuts
M12
Flange Information Jis 5k Hexagon Boltsnuts Length
90 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
4
Specifications Actuators
Electric Motor | Lock Lever | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
050 - 2"
Specifications Stem Material
403 Stainless Steel (SUS403)
Specifications Weight
2.5 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
