700V Metallized Film Capacitor - CHG Series
700V Metallized Film Capacitor - CHG Series
SKU:MET-5dfe10
High-performance 700V Metallized Film Capacitor - Ideal for high-power applications, conduction-cooled, and stackable. Reliable operation with ±10% capacitance tolerance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
700V Metallized Film Capacitor - CHG Series
$49.99
Quantity: 1
Claim Your Seller Account
700V Metallized Film Capacitor - CHG Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

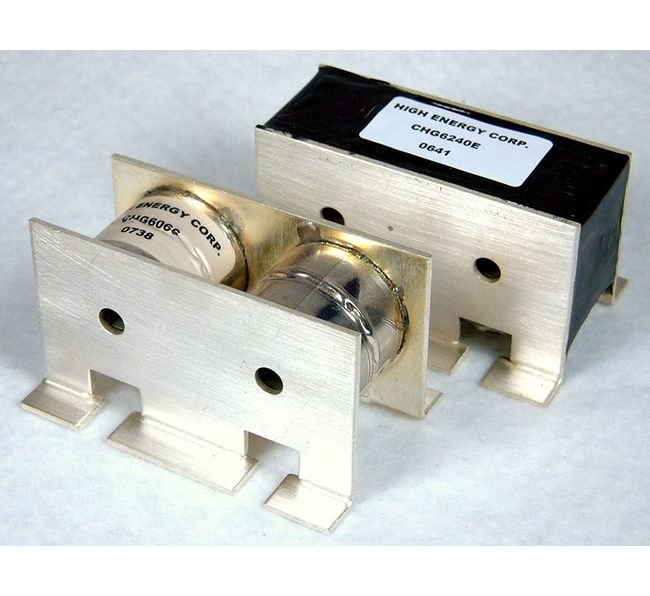

The Standard CHG Series Metallized Film Capacitor offers superior performance with a capacitance of 0.33 µF, a maximum working voltage of 700 V, and a maximum power of 200 kV·A. Ideal for high-power applications, this capacitor is conduction-cooled, stackable in series and parallel, and boasts low stray inductance and a dissipation factor of 0.1% maximum. With dimensions of 3 x 2 x 1 3/4 inches and a weight of 0.23 kg, it operates efficiently at temperatures up to +90 ºC. Trusted for its ±10% standard capacitance tolerance, this capacitor ensures reliable operation in demanding environments.
Product Specifications
Specifications Cap
0.33 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

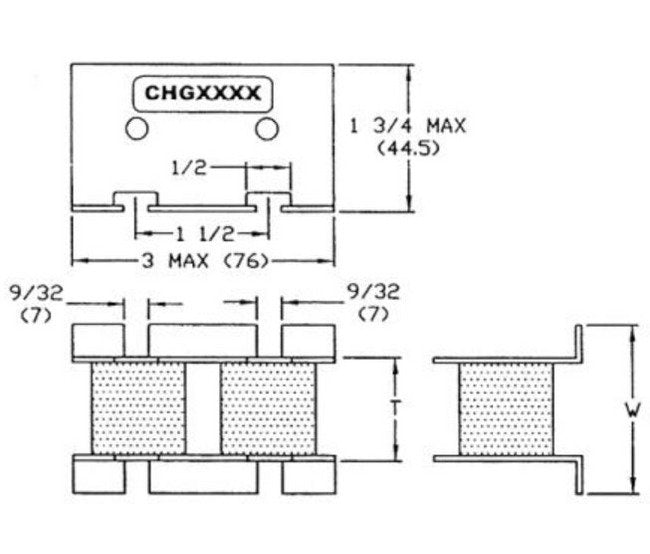

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
295 kHz
Specifications Fl
197 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
350 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
200 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.23 kg | 0.50 lb
