72-Inch Ionizing Bar for Static Elimination
72-Inch Ionizing Bar for Static Elimination
SKU:STA-29e11e
Effectively eliminate static electricity with the 72-Inch Ionizing Bar for improved product quality and safety.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
72-Inch Ionizing Bar for Static Elimination
$299.99
Quantity: 1
Claim Your Seller Account
72-Inch Ionizing Bar for Static Elimination
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

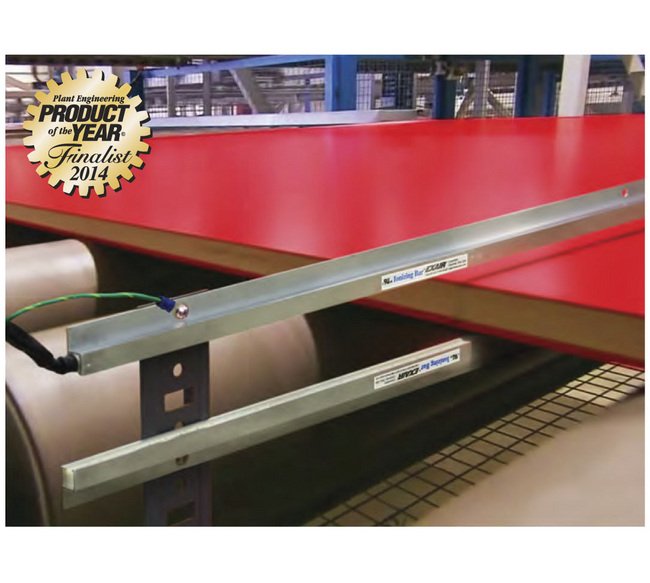

The 72-Inch Ionizing Bar by EXAIR efficiently eliminates static electricity on paper, film, and plastics, preventing dust attraction, product damage, and personnel shocks. Equipped with a high concentration of positive and negative ions, this Ionizing Bar ensures rapid static decay within a 2-inch range. Its compact design fits seamlessly in machinery spaces, featuring stainless steel emitters, UL-rated plastic parts, and a 5 kVrms power supply for safe and effective static elimination. Ideal for various applications like labeling, packaging, and screen printing, this Ionizing Bar offers a shockless, non-radioactive solution to static-related issues, enhancing operational efficiency and product quality.
Product Specifications
Specifications Advantages
Compact | Easy to Install, Equipped with Mounting Flange | Effective up to 2 inch (51 mm) | Fully Assembled | Low Cost | Low Maintenance | Rapid Static Decay | Rugged Design for Industrial Environments | Shockless, Non-Radioactive
Specifications Applications
Bag Making - Form and Fill | Converting Machinery | Hard to Reach Places or Obstructed Surfaces | Labeling | Neutralizing Shrink Wrap | Neutralizing Slitting Operations | Packaging | Product Moving at High Speeds | Screen Printing | Sheet Fed and Web Presses | Surfaces with an Extremely High Charge | Textiles
Specifications Certifications
Ionizing Bars are UL Component Recognized to U.S. and Canadian safety standards. Power supplies are Underwriters Laboratories (UL) Listed to U.S. and Canadian safety standards, and are European Conformity (CE) and Restriction Of Hazardous Substances (RoHs) Compliant.
Specifications Emitters Material
Stainless Steel
Specifications Included Accessories
5' (1.52 m) Length of Shielded Cable | Assembled Connector
Specifications Ionizing Bar Channel Material
Aluminum
Specifications Length
72 in | 1829 mm
Specifications Maximum Ambient Temperature
165 ºF | 74 ºC
Specifications Maximum Distance
2 in | 51 mm
Specifications Plastic Parts Grading
UL rated 94 HB
Specifications Power Supply
5 kVrms, 5 milliamperes (maximum) power supply.
Specifications Problems Solved With Static Eliminators
Dust clinging to product | Hazardous sparks or shocks | Materials tearing, jamming or curling | Product clinging to itself, rollers, machine beds or frames | Sheet feeding problems
