72 Series .157 Board Hole x .157 Chassis Side PCB Support
72 Series .157 Board Hole x .157 Chassis Side PCB Support
SKU:01C-19414c
Securely mount circuit boards with the 72 Series .157 Board Hole x .157 Chassis Side PCB Support. Durable Nylon 66 construction, RoHS compliant, and ASTM certified for reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
72 Series .157 Board Hole x .157 Chassis Side PCB Support
$24.99
Quantity: 1
Claim Your Seller Account
72 Series .157 Board Hole x .157 Chassis Side PCB Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

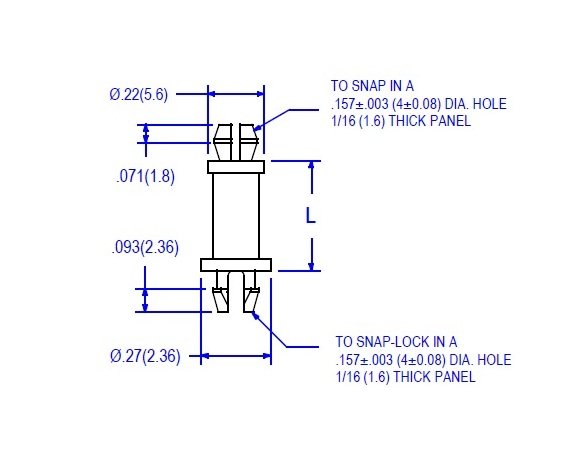

The 72 Series .157 Board Hole x .157 Chassis Side PCB Support is designed for secure mounting of circuit boards with .157 snap fit PCB and lock fit chassis end. Crafted from Nylon 66 UL94V-2 material, this support offers high durability and RoHS compliance. With a temperature range of -40 to 185F (-40 to 85C), it ensures reliable performance in various environments. ASTM D 4066 and PA111 certified, this PCB support provides a stable and safe mounting solution for electronic assemblies.
Product Specifications
Specifications Dim L
.687 (17.5) inches (mm)
